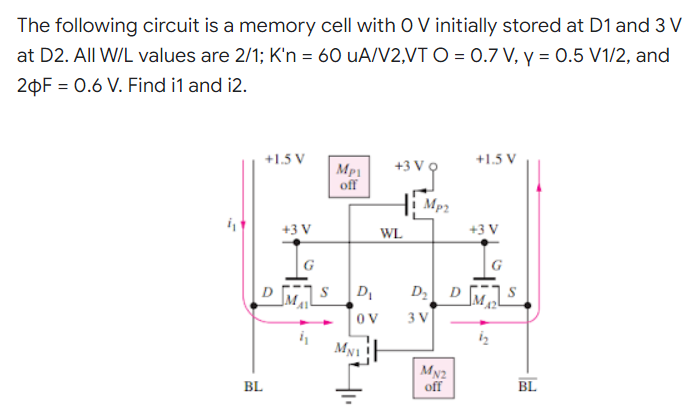

The following circuit is a memory cell with O V initially stored at D1 and 3 V at D2. All W/L values are 2/1; K'n = 60 u
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
The following circuit is a memory cell with O V initially stored at D1 and 3 V at D2. All W/L values are 2/1; K'n = 60 u
The following circuit is a memory cell with O V initially stored at D1 and 3 V at D2. All W/L values are 2/1; K'n = 60 uA/V2,VT O = 0.7 V, y = 0.5 V1/2, and 20F = 0.6 V. Find i1 and i2. +1.5 V +1.5 V Mp1 off +3v9 4₁ BL +3 V G D₁ OV MN1 WL Mp2 D₂ 3 V +3 V G DM ½ MN2 off BL
