= (d) The circuit shown in Figure 3 is designed to limit the peak-to-peak (p-p) voltage of Vout. If Vin is a 40 Vp-p sig
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
= (d) The circuit shown in Figure 3 is designed to limit the peak-to-peak (p-p) voltage of Vout. If Vin is a 40 Vp-p sig

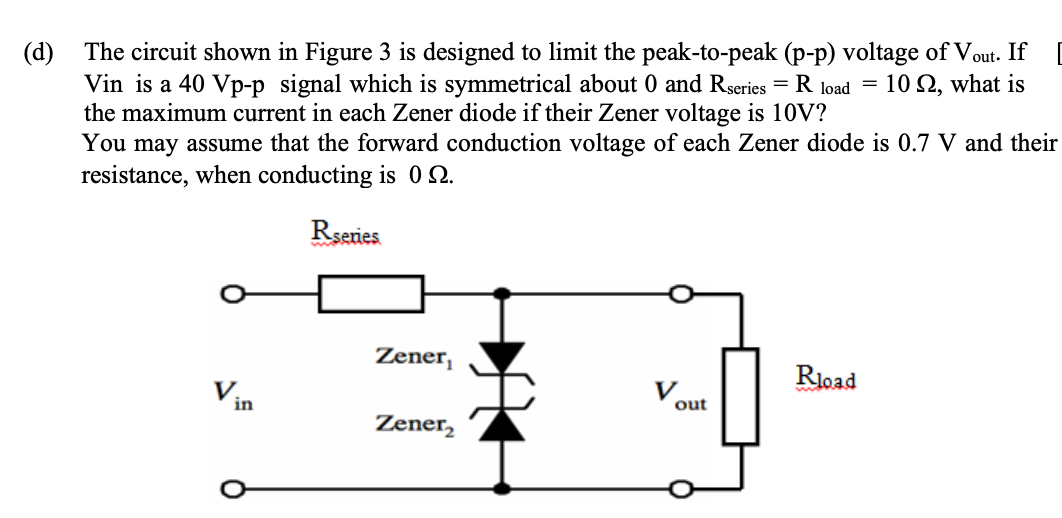

= (d) The circuit shown in Figure 3 is designed to limit the peak-to-peak (p-p) voltage of Vout. If Vin is a 40 Vp-p signal which is symmetrical about 0 and Rseries R load = 10 Q2, what is the maximum current in each Zener diode if their Zener voltage is 10V? You may assume that the forward conduction voltage of each Zener diode is 0.7 V and their resistance, when conducting is 02. Rseries Rload V Vin Zener, Zener₂ out
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
