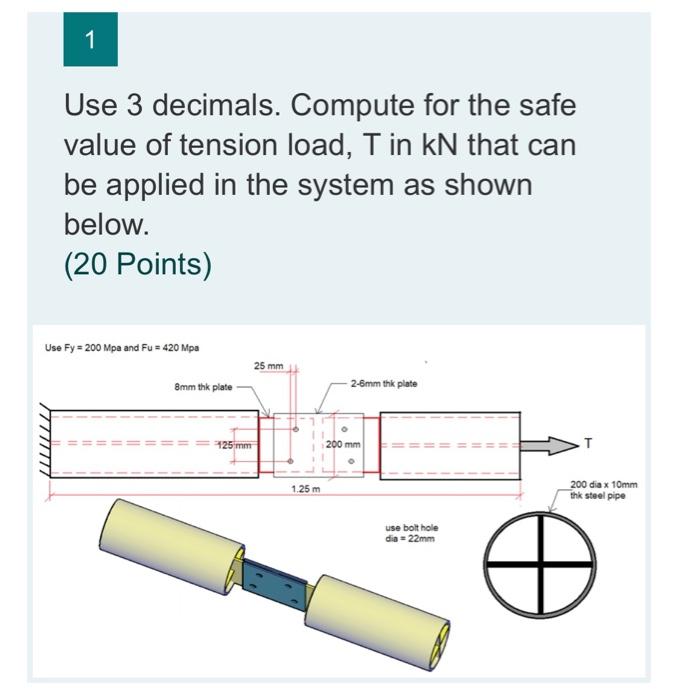

1 Use 3 decimals. Compute for the safe value of tension load, T in kN that can be applied in the system as shown below. (20 Points) Use Fy= 200 Mpa and Fu = 420 Mpa -2-6mm thk plate 11 8mm thk plate- 125 mm 25 mm 1.25 m 200 mm use bolt hole dia = 22mm || 200 dia x 10mm thk steel pipe
2 From Problem No.1: Use 3 decimals. Compute for the least safe value of tension load, T in kN that can be applied in the system. (20 Points)

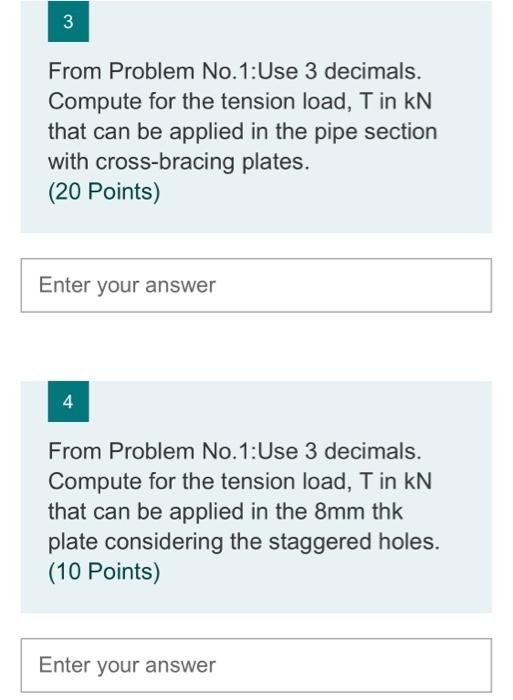

3 From Problem No.1:Use 3 decimals. Compute for the tension load, T in KN that can be applied in the pipe section with cross-bracing plates. (20 Points) Enter your answer 4 From Problem No.1:Use 3 decimals. Compute for the tension load, T in KN that can be applied in the 8mm thk plate considering the staggered holes. (10 Points) Enter your answer

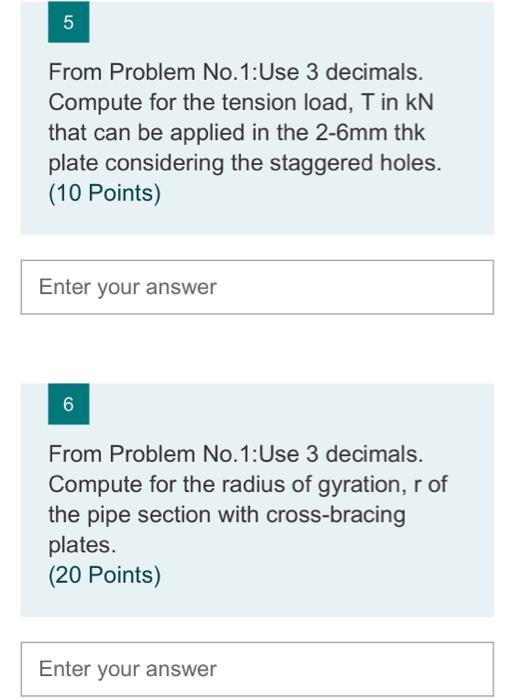

5 From Problem No.1: Use 3 decimals. Compute for the tension load, T in KN that can be applied in the 2-6mm thk plate considering the staggered holes. (10 Points) Enter your answer 6 From Problem No.1: Use 3 decimals. Compute for the radius of gyration, r of the pipe section with cross-bracing plates. (20 Points) Enter your answer
