2. Obtain the transfer function from reference R(s) to output Y(s), i.e. Y(s)/R(s), for the system shown below (hint: re
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. Obtain the transfer function from reference R(s) to output Y(s), i.e. Y(s)/R(s), for the system shown below (hint: re

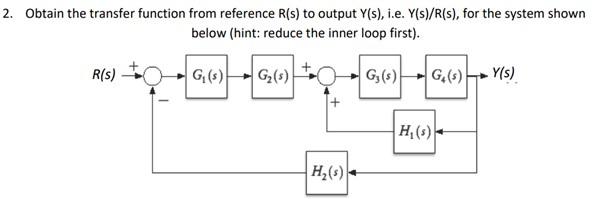

2. Obtain the transfer function from reference R(s) to output Y(s), i.e. Y(s)/R(s), for the system shown below (hint: reduce the inner loop first). R(S) G₁ (s) G₂ (s) G₁(s) G₁(s) Y(s) H₂(s) H₂(s)
