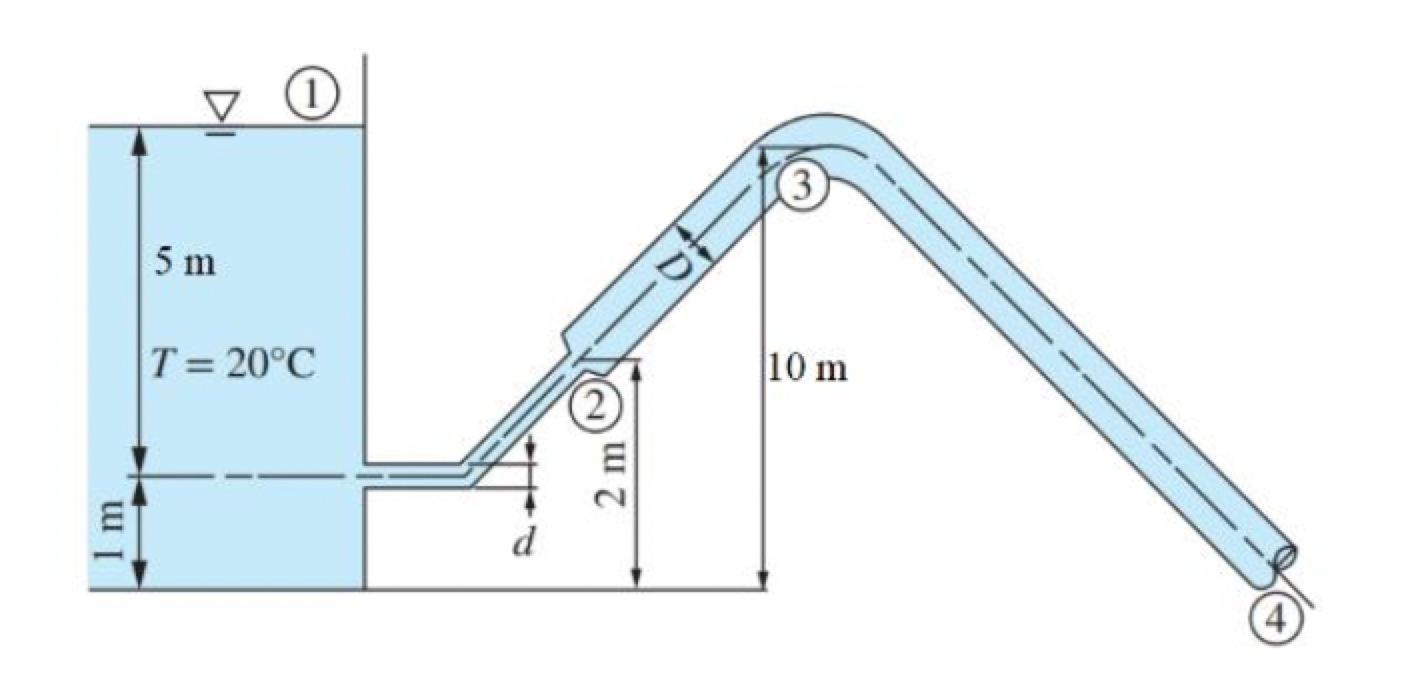

Water at 20°C is siphoned from a reservoir as shown in Figure.
For d = 5 cm and D = 15 cm, h = 5 m, determine the following:
(a) Minimum flow rate that can be achieved
without cavitation occurring in the piping system and
(b) Maximum elevation of the highest point of the piping system to
avoid cavitation.
3 5 m T = 20°C |i0 m 2 2 m) I m 4
