TRC 206 TT 206 TI 206 - FCV 206 E. For the drawing above. Add control loops (correctly labeled) that will control flow,

Post by answerhappygod »

Trc 206 Tt 206 Ti 206 Fcv 206 E For The Drawing Above Add Control Loops Correctly Labeled That Will Control Flow 1
Trc 206 Tt 206 Ti 206 Fcv 206 E For The Drawing Above Add Control Loops Correctly Labeled That Will Control Flow 1 (81.3 KiB) Viewed 18 times

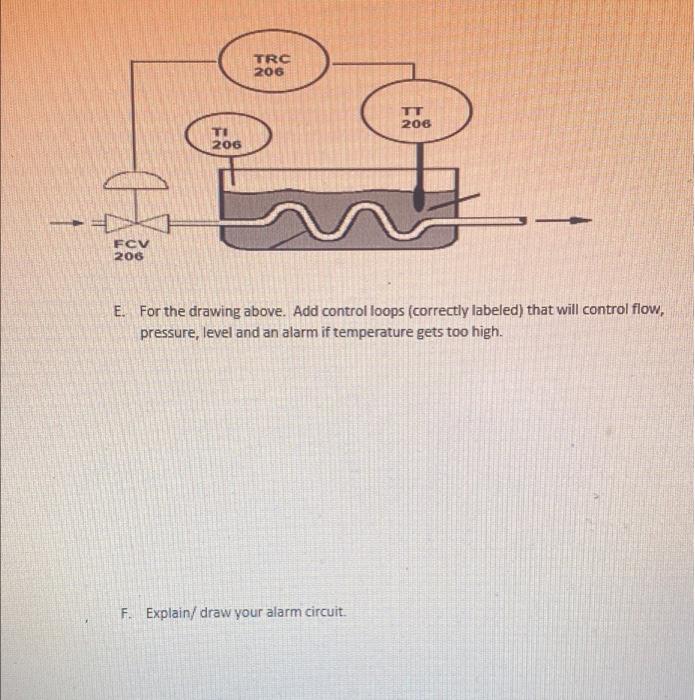

TRC 206 TT 206 TI 206 - FCV 206 E. For the drawing above. Add control loops (correctly labeled) that will control flow, pressure, level and an alarm if temperature gets too high. F. Explain/ draw your alarm circuit.
