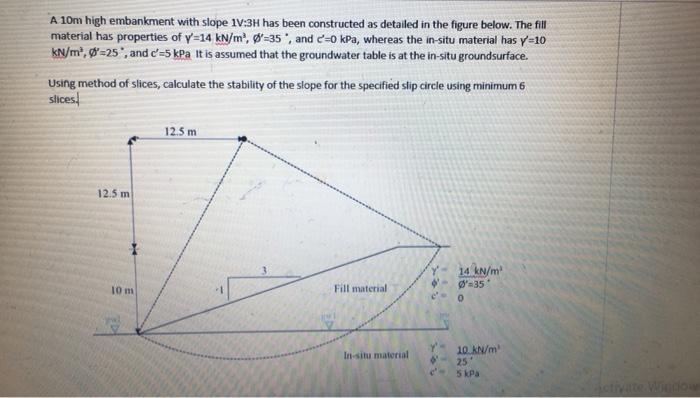

A 10m high embankment with slope 11:3H has been constructed as detailed in the figure below. The fill material has properties of y=14 kN/m, Ø=35, and 2-0 kPa, whereas the in-situ material has y=10 kN/m,ø=25*, and c'=5 kPa It is assumed that the groundwater table is at the in-situ groundsurface. Using method of slices, calculate the stability of the slope for the specified slip circle using minimum 6 slices 12.5 m 12.5 m 1 14 kN/m =35 0 10 m Fill material In-situ material 10 kN/m 25 5 kPa
