Stress Problems 1) In the section plone AB using the stress components on the stress member shown in the figure stress c

[answerhappygod]

Stress Problems 1 In The Section Plone Ab Using The Stress Components On The Stress Member Shown In The Figure Stress C 1 (26.45 KiB) Viewed 16 times

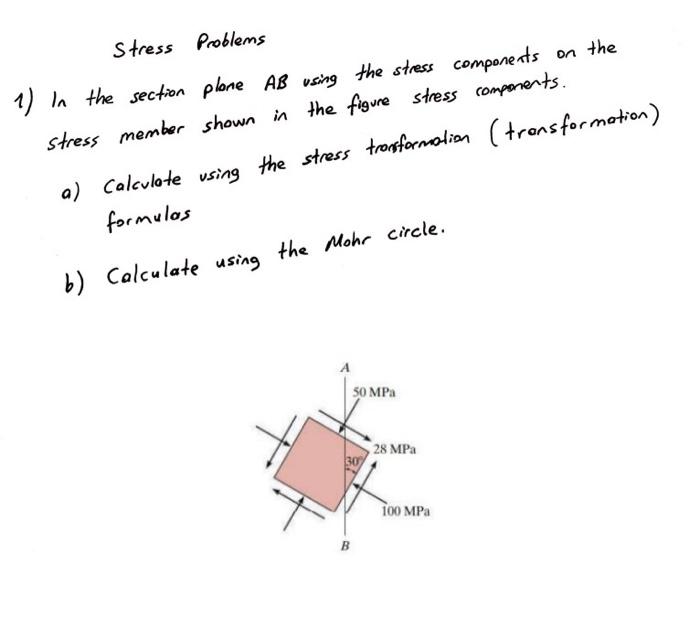

Stress Problems 1) In the section plone AB using the stress components on the stress member shown in the figure stress components. a) Calculate using the stress troisformation (transformation) formulas b) Calculate using the Mohr Circle. 50 MPa 28 MPa 30 100 MPa B
