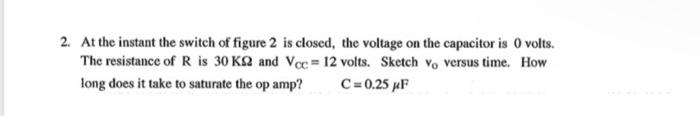

2. At the instant the switch of figure 2 is closed, the voltage on the capacitor is 0 volts. The resistance of R is 30 K2 and Voc-12 volts. Sketch Y, versus time. How long does it take to saturate the op amp? C=0.25 F

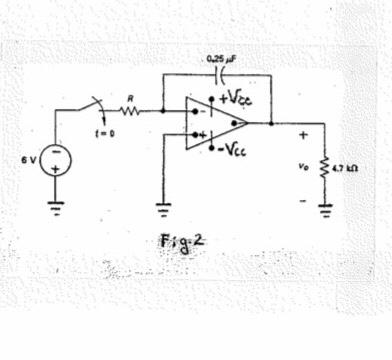

0.25 TE +Vec Fy - + +++ -Vec 6 V 4.70 Fig2
