Consider the logic diagram below: A. B B 어 G + a) What is the Boolean representation of G? b) Using Boolean algebraic ma

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Consider the logic diagram below: A. B B 어 G + a) What is the Boolean representation of G? b) Using Boolean algebraic ma

Post by answerhappygod »

1
1 (48.53 KiB) Viewed 40 times

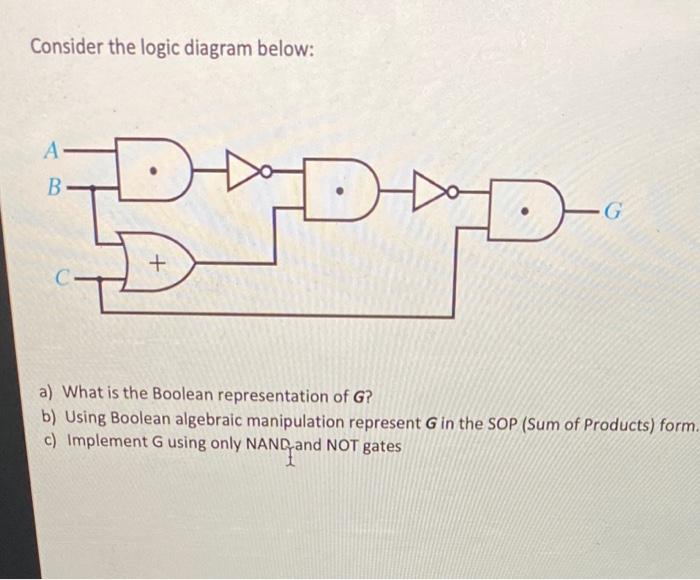

Consider the logic diagram below: A. B B 어 G + a) What is the Boolean representation of G? b) Using Boolean algebraic manipulation represent G in the SOP (Sum of Products) form. c) Implement Gusing only NANQ and NOT gates
