2.) For the circuit shown below, the battery has a voltage of 5.0 V, while the resistors have values of R1 = 2. k1, R2 =

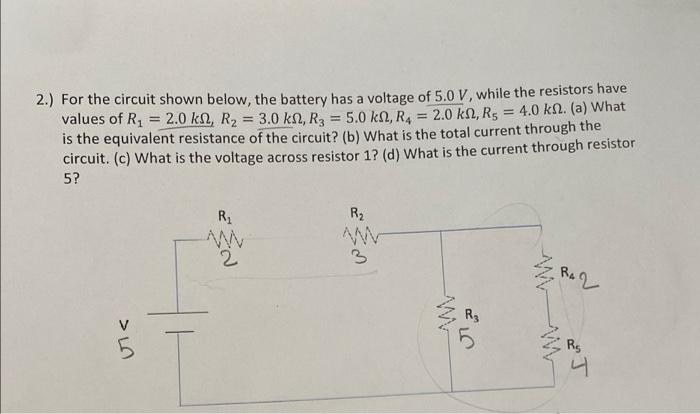

2.) For the circuit shown below, the battery has a voltage of 5.0 V, while the resistors have values of R1 = 2. k1, R2 = 3.0 k-2, R3 5.0 kA, R = 2.0 k1, Rs = 4.0 k1. (a) What is the equivalent resistance of the circuit? (b) What is the total current through the circuit. (c) What is the voltage across resistor 1? (d) What is the current through resistor 5? R₂ R W 2 3 RAZ W R3 vic 5 5 التي Rs 4
