This problem deals with the isothermal, steady-state expansion
of isobutane at, 35 [°C], from 1.5 [bar] to 5.0 [bar]. The
isobutane may be considered to behave as an ideal gas at the
initial pressure. However, at the final pressure, it is no longer
an ideal gas. The critical properties
(Tc and Pc) and
acentric factor (ω) of isobutane are, respectively:
408.1 [K], 3.648 [MPa],
and 0.181

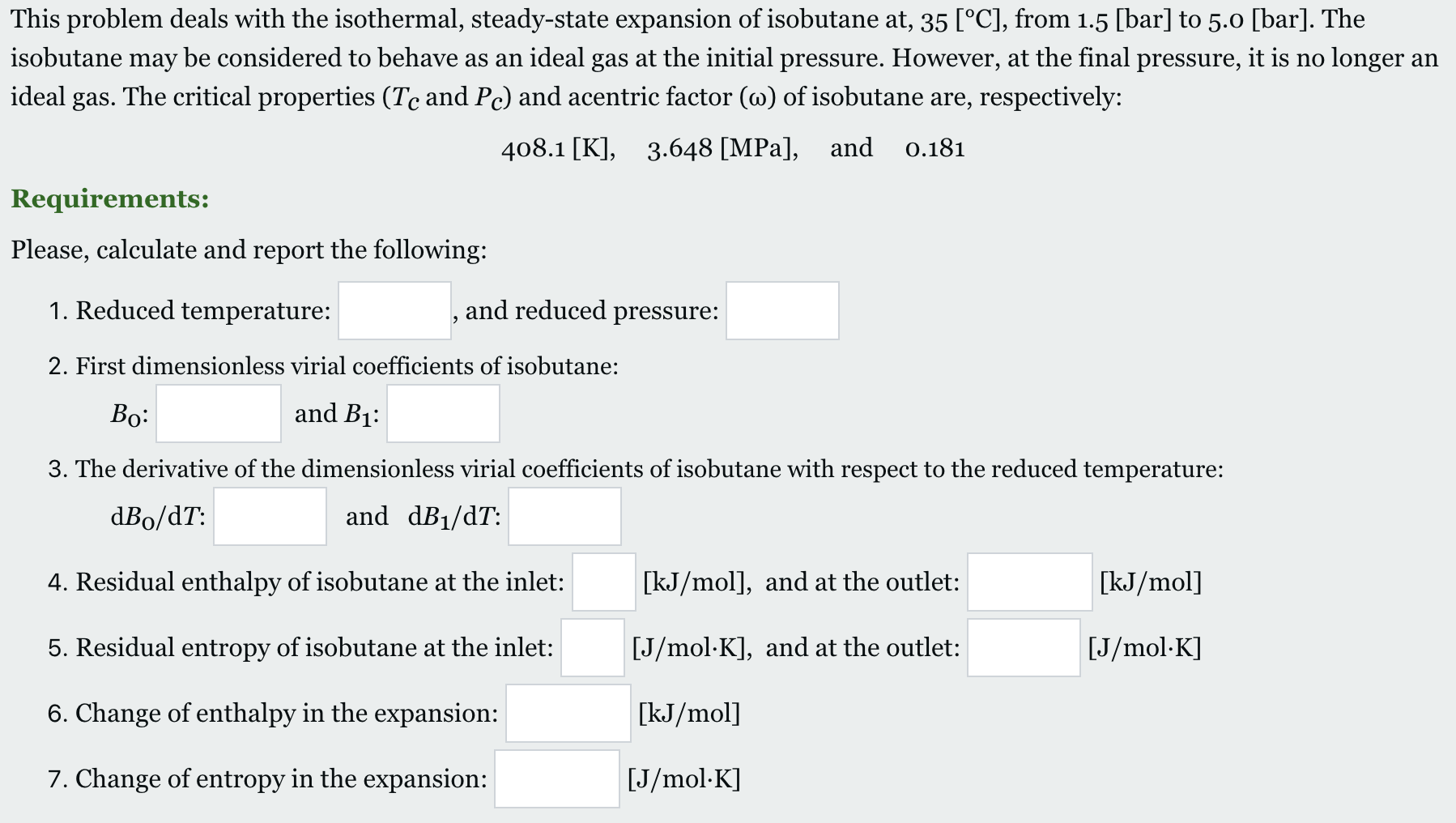

This Problem Deals With The Isothermal Steady State Expansion Of Isobutane At 35 C From 1 5 Bar To 5 0 Bar Th 1 (175.95 KiB) Viewed 49 times
This problem deals with the isothermal, steady-state expansion of isobutane at, 35 [°C], from 1.5 [bar] to 5.0 [bar]. The isobutane may be considered to behave as an ideal gas at the initial pressure. However, at the final pressure, it is no longer an ideal gas. The critical properties (Tc and Pc) and acentric factor (w) of isobutane are, respectively: 408.1 [K], 3.648 [MPa], and 0.181 Requirements: Please, calculate and report the following: 1. Reduced temperature: and reduced pressure: > 2. First dimensionless virial coefficients of isobutane: Bo: and B1: 3. The derivative of the dimensionless virial coefficients of isobutane with respect to the reduced temperature: dBo/dt: and dB1/dT: 4. Residual enthalpy of isobutane at the inlet: [kJ/mol], and at the outlet: [kJ/mol] 5. Residual entropy of isobutane at the inlet: [J/mol.K], and at the outlet: [J/mol.K] 6. Change of enthalpy in the expansion: [kJ/mol] 7. Change of entropy in the expansion: [J/mol.K]
