Consider a control system whose open loop transfer function is: 1 G(s)H(s) s(s+2)(s + 4) A PD controller of the form: Ge

[answerhappygod]

Consider A Control System Whose Open Loop Transfer Function Is 1 G S H S S S 2 S 4 A Pd Controller Of The Form Ge 1 (23.72 KiB) Viewed 37 times

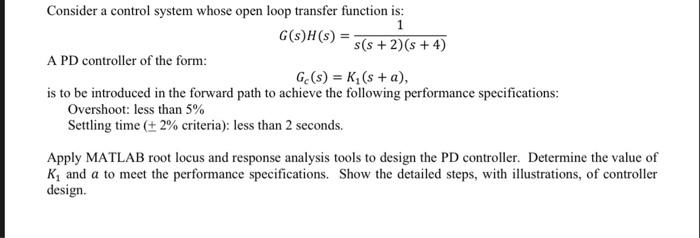

Consider a control system whose open loop transfer function is: 1 G(s)H(s) s(s+2)(s + 4) A PD controller of the form: Ge(s) = K (s + a), is to be introduced in the forward path to achieve the following performance specifications: Overshoot: less than 5% Settling time + 2% criteria): less than 2 seconds. Apply MATLAB root locus and response analysis tools to design the PD controller. Determine the value of K, and a to meet the performance specifications. Show the detailed steps, with illustrations, of controller design.
