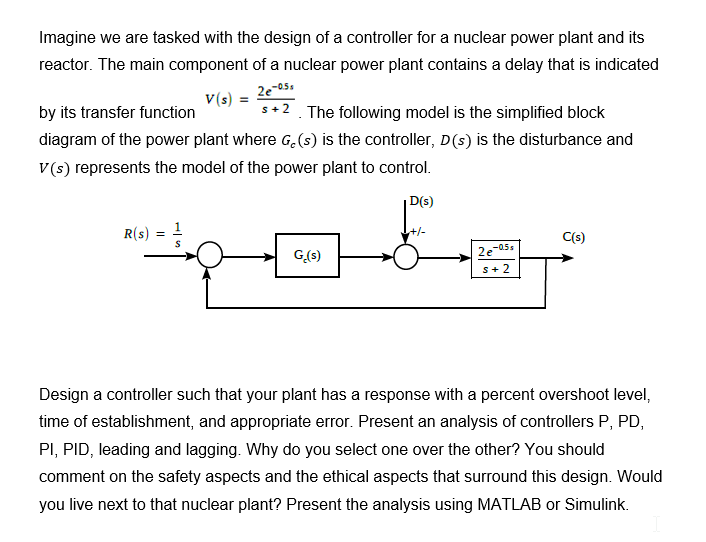

2e-055 Imagine we are tasked with the design of a controller for a nuclear power plant and its reactor. The main component of a nuclear power plant contains a delay that is indicated V(s) by its transfer function 5+2. The following model is the simplified block diagram of the power plant where G. (s) is the controller, D(s) is the disturbance and V(s) represents the model of the power plant to control. D(S) R(S) C(s) S G(s) 2e -055 S + 2 Design a controller such that your plant has a response with a percent overshoot level, time of establishment, and appropriate error. Present an analysis of controllers P, PD, PI, PID, leading and lagging. Why do you select one over the other? You should comment on the safety aspects and the ethical aspects that surround this design. Would you live next to that nuclear plant? Present the analysis using MATLAB or Simulink.
