Lab 9 Assuming you can only display one thing at a time, you want to display either the Sum or Cout. You can do this by

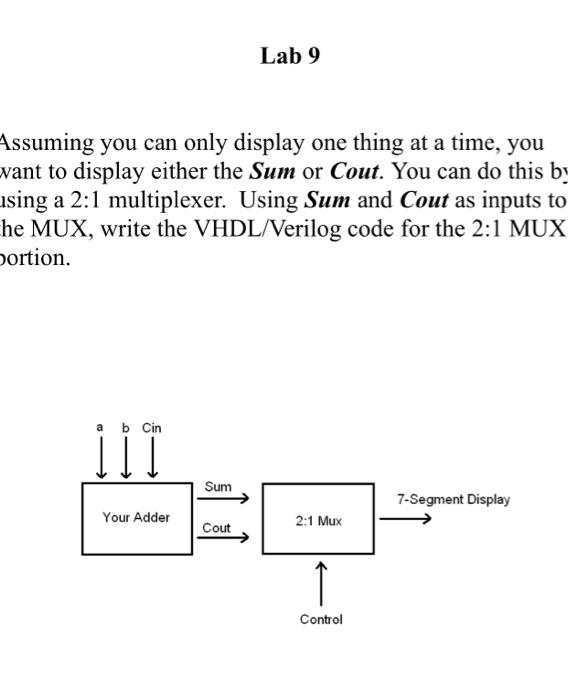

Lab 9 Assuming you can only display one thing at a time, you want to display either the Sum or Cout. You can do this by using a 2:1 multiplexer. Using Sum and Cout as inputs to he MUX, write the VHDL/Verilog code for the 2:1 MUX portion. a b Cin Sum 7-Segment Display Your Adder 2:1 Mux Cout î Control
