3.1b Assume a transfer function is subject to the input u(t) = sin 3t. The bode plot of the system is shown below. Deter

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

3.1b Assume a transfer function is subject to the input u(t) = sin 3t. The bode plot of the system is shown below. Deter

Post by answerhappygod »

3 1b Assume A Transfer Function Is Subject To The Input U T Sin 3t The Bode Plot Of The System Is Shown Below Deter 1
3 1b Assume A Transfer Function Is Subject To The Input U T Sin 3t The Bode Plot Of The System Is Shown Below Deter 1 (153.77 KiB) Viewed 55 times

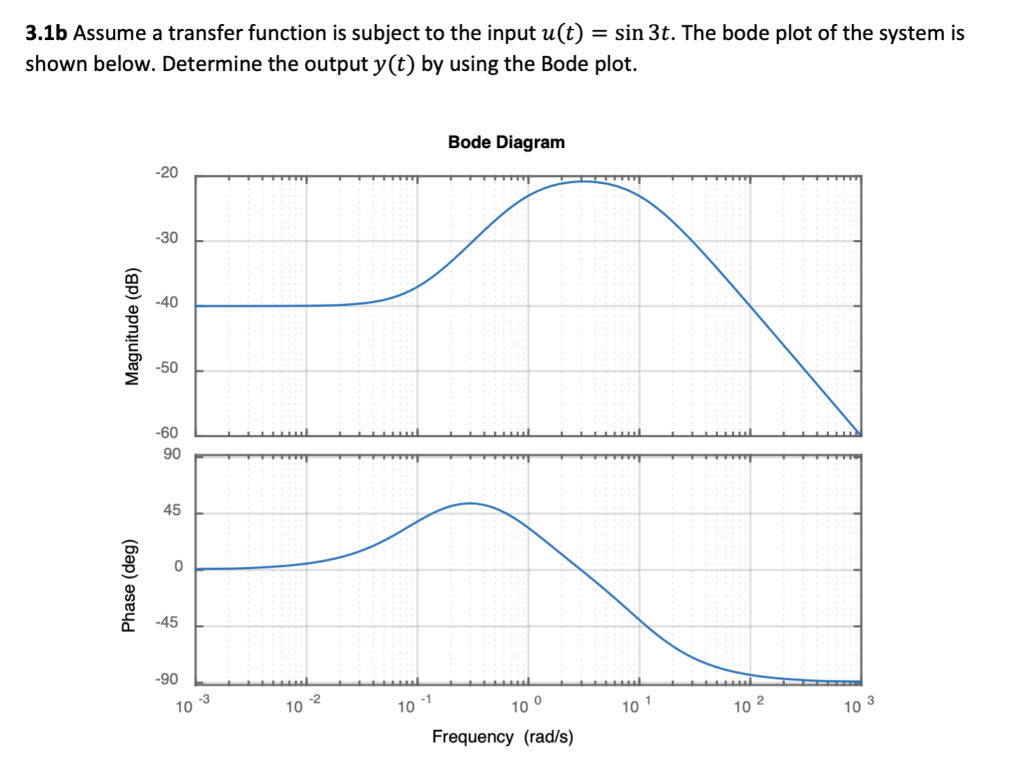

3.1b Assume a transfer function is subject to the input u(t) = sin 3t. The bode plot of the system is shown below. Determine the output y(t) by using the Bode plot. Bode Diagram -20 -30 -40 Magnitude (dB) -50 -60 90 45 o Phase (deg) -45 -90 -3 10 10-2 10 -1 100 101 102 103 Frequency (rad/s)
