= 1. Triangular block ABC with equal sides and a triangular opening DEF with equal sides with the following AB = 2.500 +

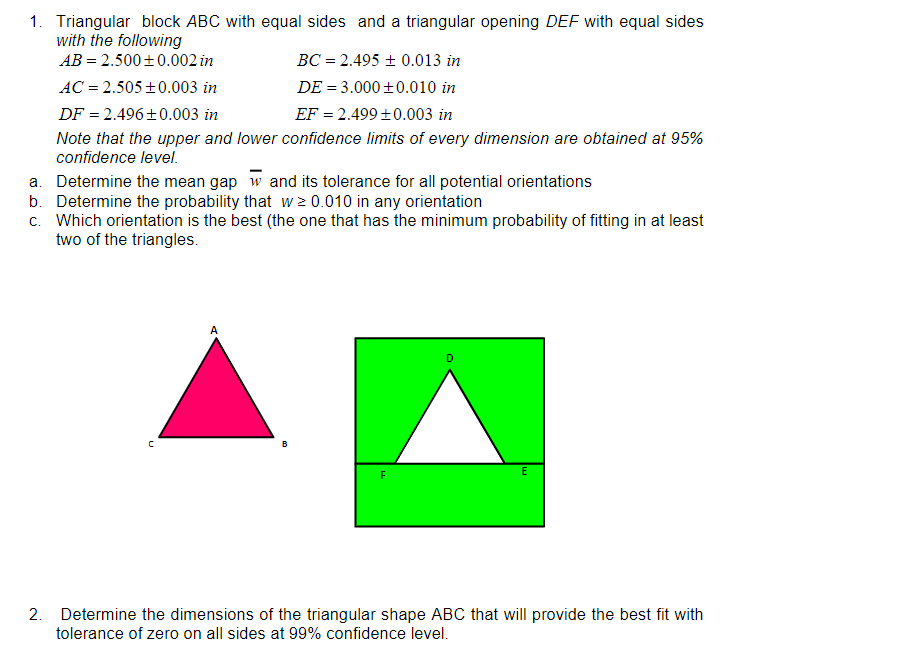

= 1. Triangular block ABC with equal sides and a triangular opening DEF with equal sides with the following AB = 2.500 +0.002 in BC = 2.495 + 0.013 in AC = 2.505 +0.003 in DE = 3.000+0.010 in DF = 2.496 +0.003 in EF = 2.499 +0.003 in Note that the upper and lower confidence limits of every dimension are obtained at 95% confidence level. a. Determine the mean gap w and its tolerance for all potential orientations b. Determine the probability that w 2 0.010 in any orientation C. Which orientation is the best (the one that has the minimum probability of fitting in at least two of the triangles. A 2. Determine the dimensions of the triangular shape ABC that will provide the best fit with tolerance of zero on all sides at 99% confidence level.
