- L K J H P 3 35 Points Assume P1 2 Kn P2 5 Kn And P3 4 Kn Determine The Force In Members Bc Cl And Lk 1 (237.09 KiB) Viewed 15 times
= = L K J H == P.3. (35 points) Assume P1 = 2 kN, P2 = 5 kN and P3 = 4 kN. Determine the force in members BC, CL, and LK
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
= = L K J H == P.3. (35 points) Assume P1 = 2 kN, P2 = 5 kN and P3 = 4 kN. Determine the force in members BC, CL, and LK

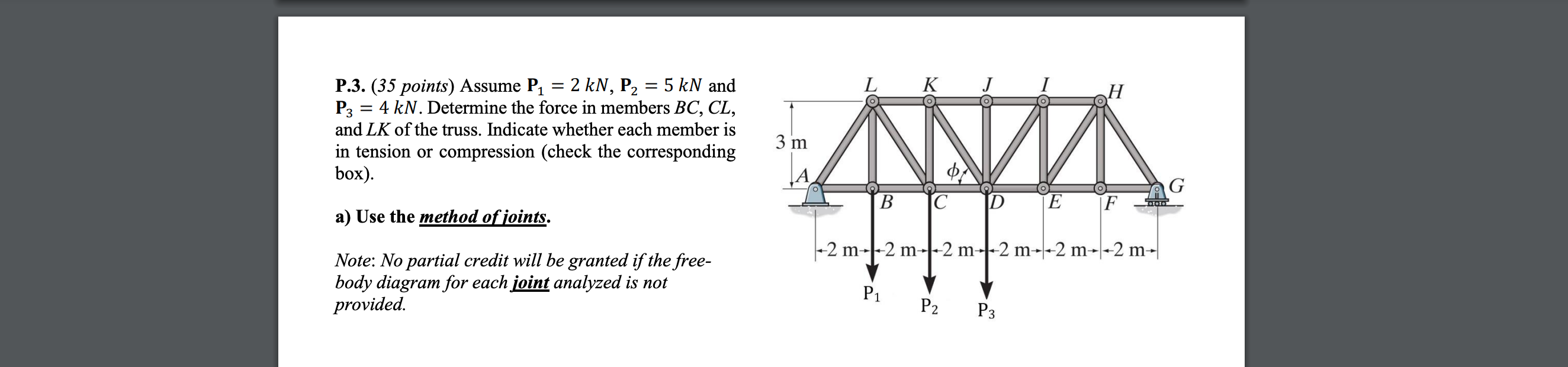

= = L K J H == P.3. (35 points) Assume P1 = 2 kN, P2 = 5 kN and P3 = 4 kN. Determine the force in members BC, CL, and LK of the truss. Indicate whether each member is in tension or compression (check the corresponding box). 3 m Α. G NNN 111 B C D E F Tololo a) Use the method of joints. -2 m-+-2 m+-2 m +2 m-4-2 m-4-2 m- Note: No partial credit will be granted if the free- body diagram for each joint analyzed is not provided. P2 P3
