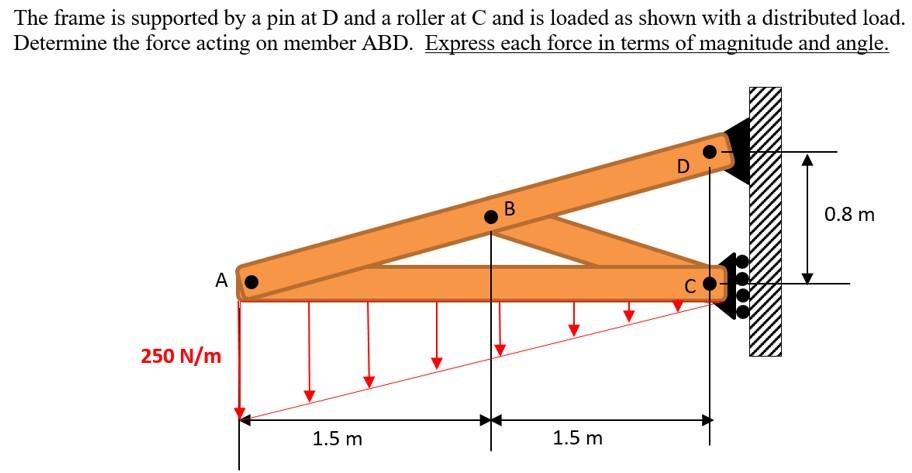

The frame is supported by a pin at D and a roller at C and is loaded as shown with a distributed load. Determine the force acting on member ABD. Express each force in terms of magnitude and angle. D B 0.8 m A 250 N/m 1.5 m 1.5 m C 推

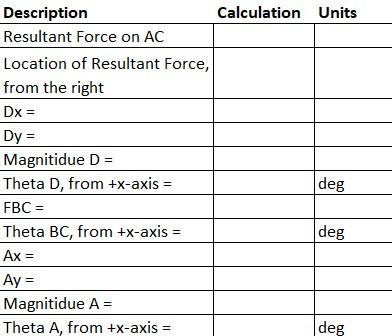

Description Resultant Force on AC Location of Resultant Force, from the right Dx = Dy = Magnitidue D = Theta D, from +x-axis = FBC = Theta BC, from +x-axis = Ax = Ay = Magnitidue A = Theta A, from +x-axis = Calculation Units deg deg deg
