Question # 3(25 Marks) Cross section of a beam is shown in Figure 3. If a shear force V=100 kN is applied to the beam, f

Post by answerhappygod »

Question 3 25 Marks Cross Section Of A Beam Is Shown In Figure 3 If A Shear Force V 100 Kn Is Applied To The Beam F 1
Question 3 25 Marks Cross Section Of A Beam Is Shown In Figure 3 If A Shear Force V 100 Kn Is Applied To The Beam F 1 (35.62 KiB) Viewed 35 times

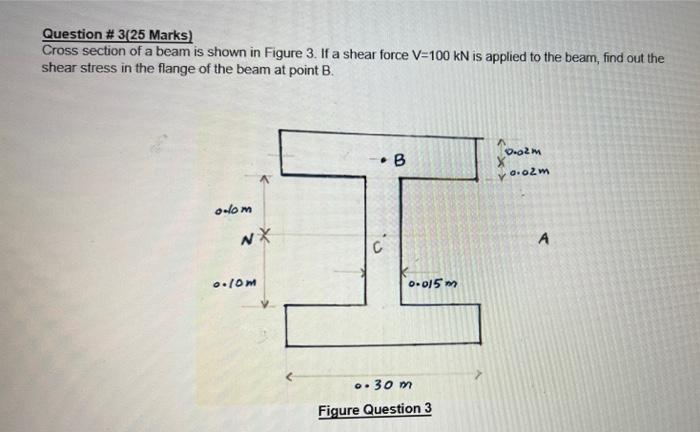

Question # 3(25 Marks) Cross section of a beam is shown in Figure 3. If a shear force V=100 kN is applied to the beam, find out the shear stress in the flange of the beam at point B. 0.02m B ✓ 0.02m odom NX 0.10m C 0.015m 0.30 m Figure Question 3
