Problem 1 (70pts) Given the following retaining wall, determine the following: a) the magnitude and location of the tota

Post by answerhappygod »

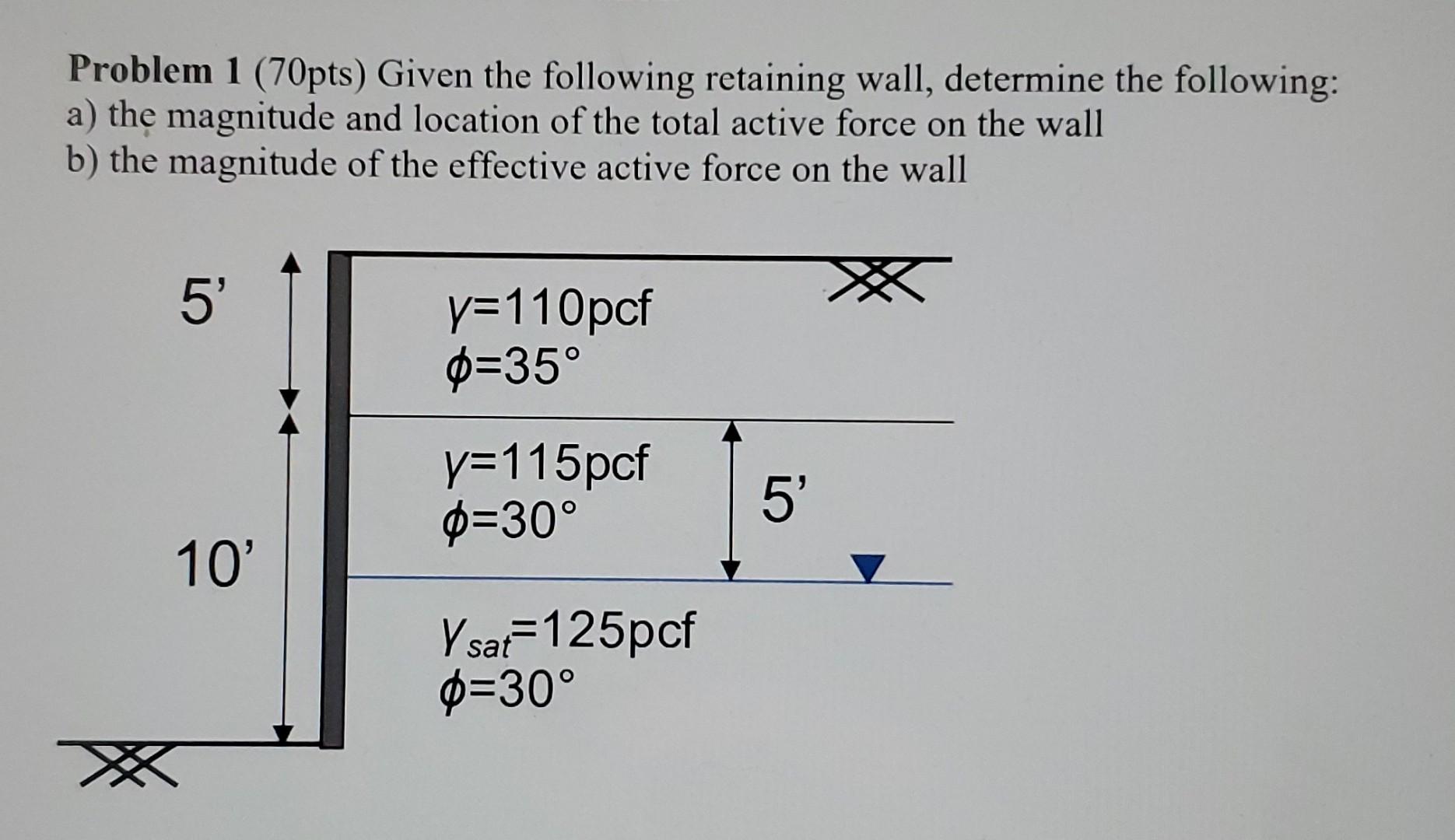

Problem 1 70pts Given The Following Retaining Wall Determine The Following A The Magnitude And Location Of The Tota 1
Problem 1 70pts Given The Following Retaining Wall Determine The Following A The Magnitude And Location Of The Tota 1 (129.16 KiB) Viewed 43 times
Problem 1 (70pts) Given the following retaining wall, determine the following: a) the magnitude and location of the total active force on the wall b) the magnitude of the effective active force on the wall 5' y=110pcf p=35° y=115pcf p=30° 5' 10' Ysat 125pcf $=30°
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
