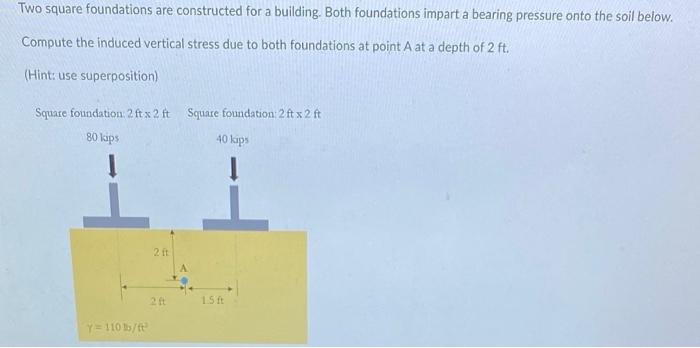

Two square foundations are constructed for a building. Both foundations impart a bearing pressure onto the soil below. Compute the induced vertical stress due to both foundations at point A at a depth of 2 ft. (Hint: use superposition) Square foundation: 2ft x 2 ft Square foundation: 2 ft x 2 ft 80 kips 40 kips 1 1 2 ft Y=110 lb/ft 2 ft A 1.5 ft

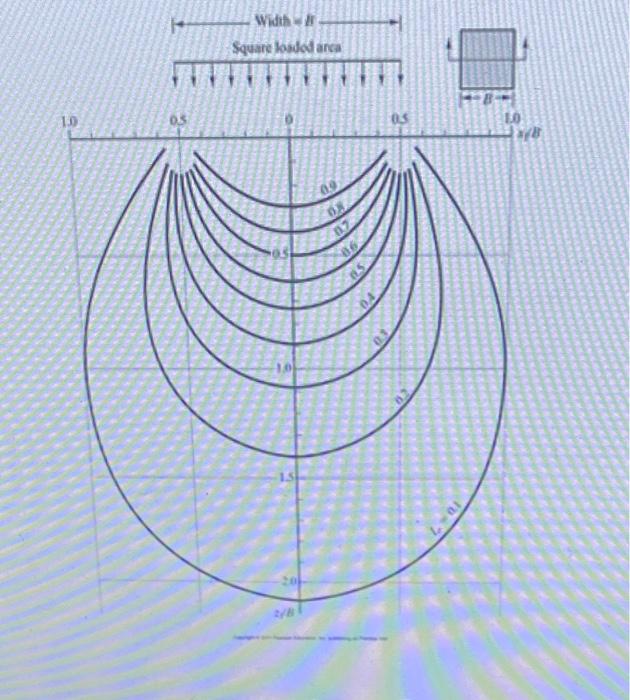

1.0 Width Square loaded arca 20 06 n.5 0.5 10- 1.0 218

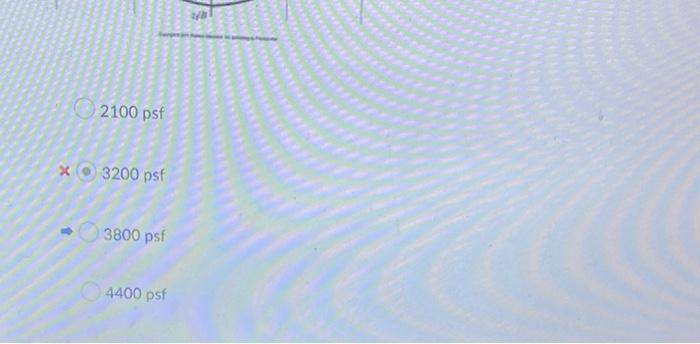

x 2100 psf 3200 psf 3800 psf 4400 psf 4
