Question #2(25 Marks) Part of the wing is shown in Figure 2 as two-cell box in which the vertical spars are connected to

[answerhappygod]

Question 2 25 Marks Part Of The Wing Is Shown In Figure 2 As Two Cell Box In Which The Vertical Spars Are Connected To 1 (36.76 KiB) Viewed 29 times

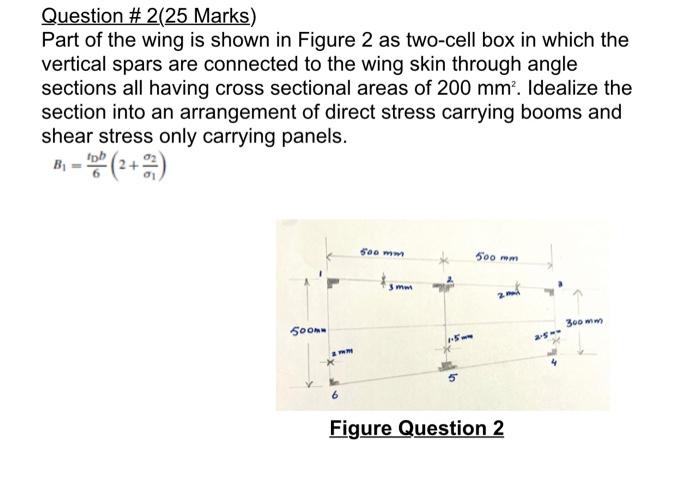

Question #2(25 Marks) Part of the wing is shown in Figure 2 as two-cell box in which the vertical spars are connected to the wing skin through angle sections all having cross sectional areas of 200 mm². Idealize the section into an arrangement of direct stress carrying booms and shear stress only carrying panels. B (2+3) Soom 500 mm 3 mm 2 300 mm 500m aus Figure Question 2
