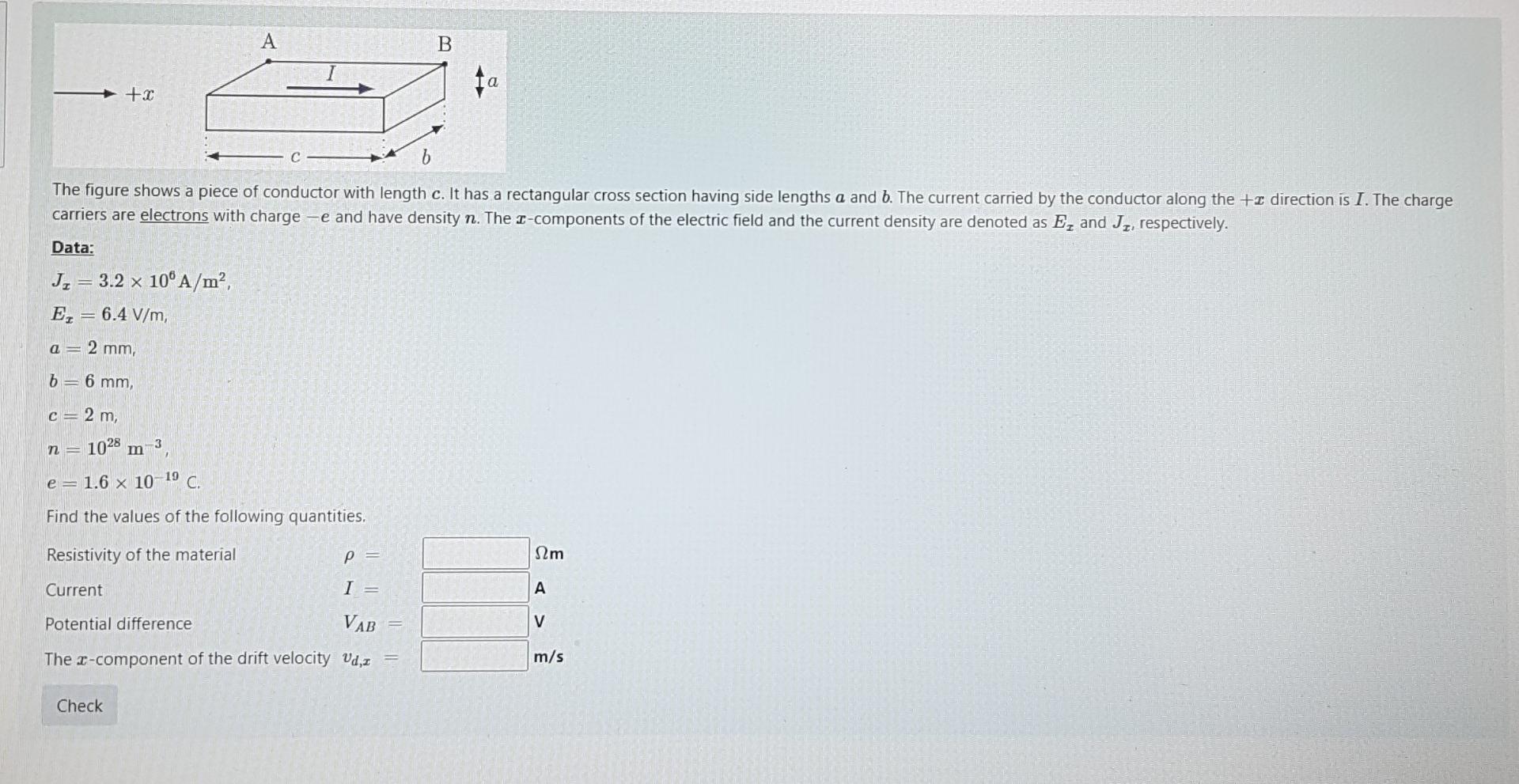

- A B Ta C B The Figure Shows A Piece Of Conductor With Length C It Has A Rectangular Cross Section Having Side Lengths 1 (228.65 KiB) Viewed 25 times
A B ta +c b The figure shows a piece of conductor with length c. It has a rectangular cross section having side lengths a and b. The current carried by the conductor along the +ş direction is I. The charge carriers are electrons with charge -e and have density n. The I-components of the electric field and the current density are denoted as E, and J , respectively. Data: J= 3.2 x 10° A/m², E. = 6.4 V/m, a= 2 mm b= 6 mm, n = C= 2 m 1028 m 3 e = 1.6 x 10-19 C. Find the values of the following quantities, Resistivity of the material P = S2m Current I = A Potential difference VAB V The x-component of the drift velocity Vd, I m/s Check
