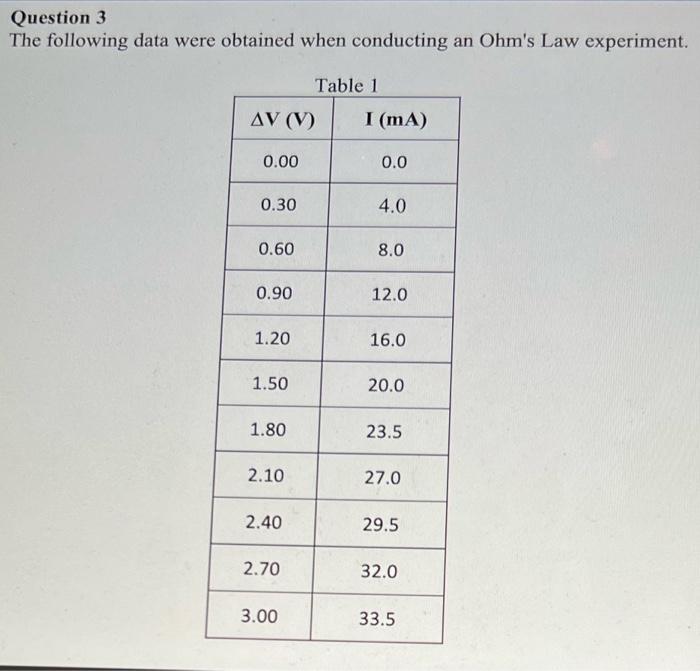

Question 3 The following data were obtained when conducting an Ohm's Law experiment. Table 1 AV (V) I (MA) 0.00 0.0 0.30 4.0 0.60 8.0 0.90 12.0 1.20 16.0 1.50 20.0 1.80 23.5 2.10 27.0 2.40 29.5 2.70 32.0 3.00 33.5

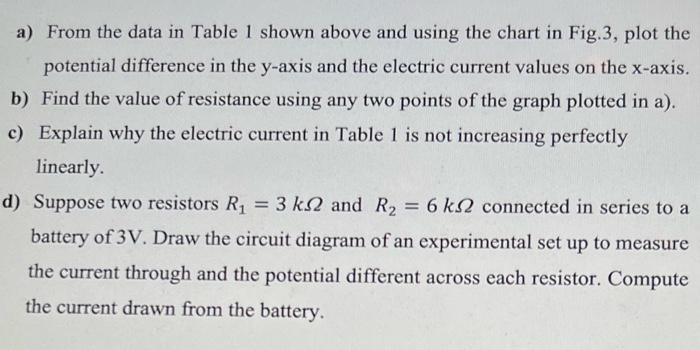

a) From the data in Table 1 shown above and using the chart in Fig.3, plot the potential difference in the y-axis and the electric current values on the x-axis. b) Find the value of resistance using any two points of the graph plotted in a). c) Explain why the electric current in Table 1 is not increasing perfectly linearly d) Suppose two resistors R1 = 3 k2 and R2 6 KS2 connected in series to a battery of 3V. Draw the circuit diagram of an experimental set up to measure the current through and the potential different across each resistor. Compute the current drawn from the battery.
