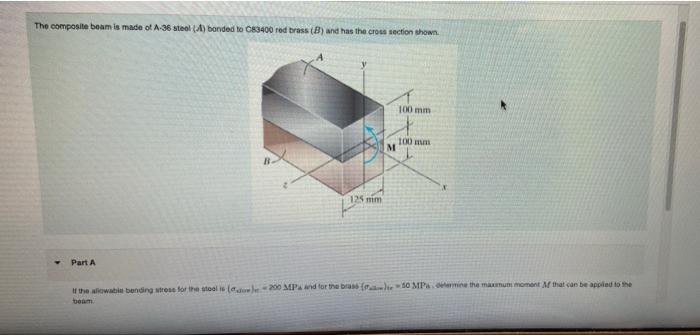

The composite beam is made of A-36 stool (1) bonded to C83400 red brass (B) and has the cross section shown. 100 mm 100 mm M 125 mm Part A the wiowa bending one for the stoel is led-200 MP and for the bransfer 10 MP.ermine the moun moment that can be applied to the team

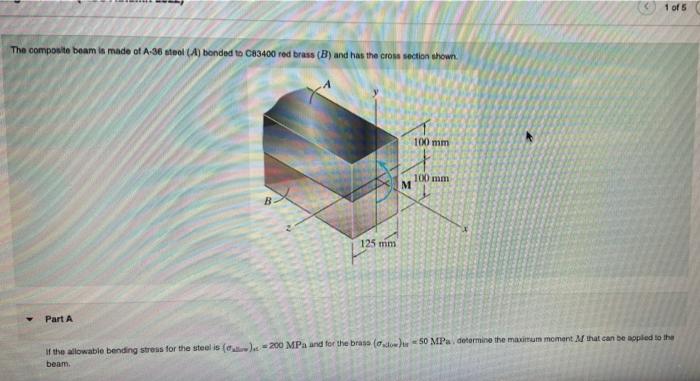

1 of 5 The composite beam is made of A-36 stool (A) bonded to C83400 red brass (B) and has the cross section shown 100 mm 100 mm M B 125 mm Part A If the allowable bending stress for the steel is ( 200 MPa and for the brass (.dow) 50 MPa determine the maximum moment that can be appled to the beam
