(b) Figure Q1(b)shows an inclined manometer used to measure the gas-air pressure different. The inclined section is set

Post by answerhappygod »

B Figure Q1 B Shows An Inclined Manometer Used To Measure The Gas Air Pressure Different The Inclined Section Is Set 1
B Figure Q1 B Shows An Inclined Manometer Used To Measure The Gas Air Pressure Different The Inclined Section Is Set 1 (176.18 KiB) Viewed 24 times
please help me faster fluid mechanics 😓

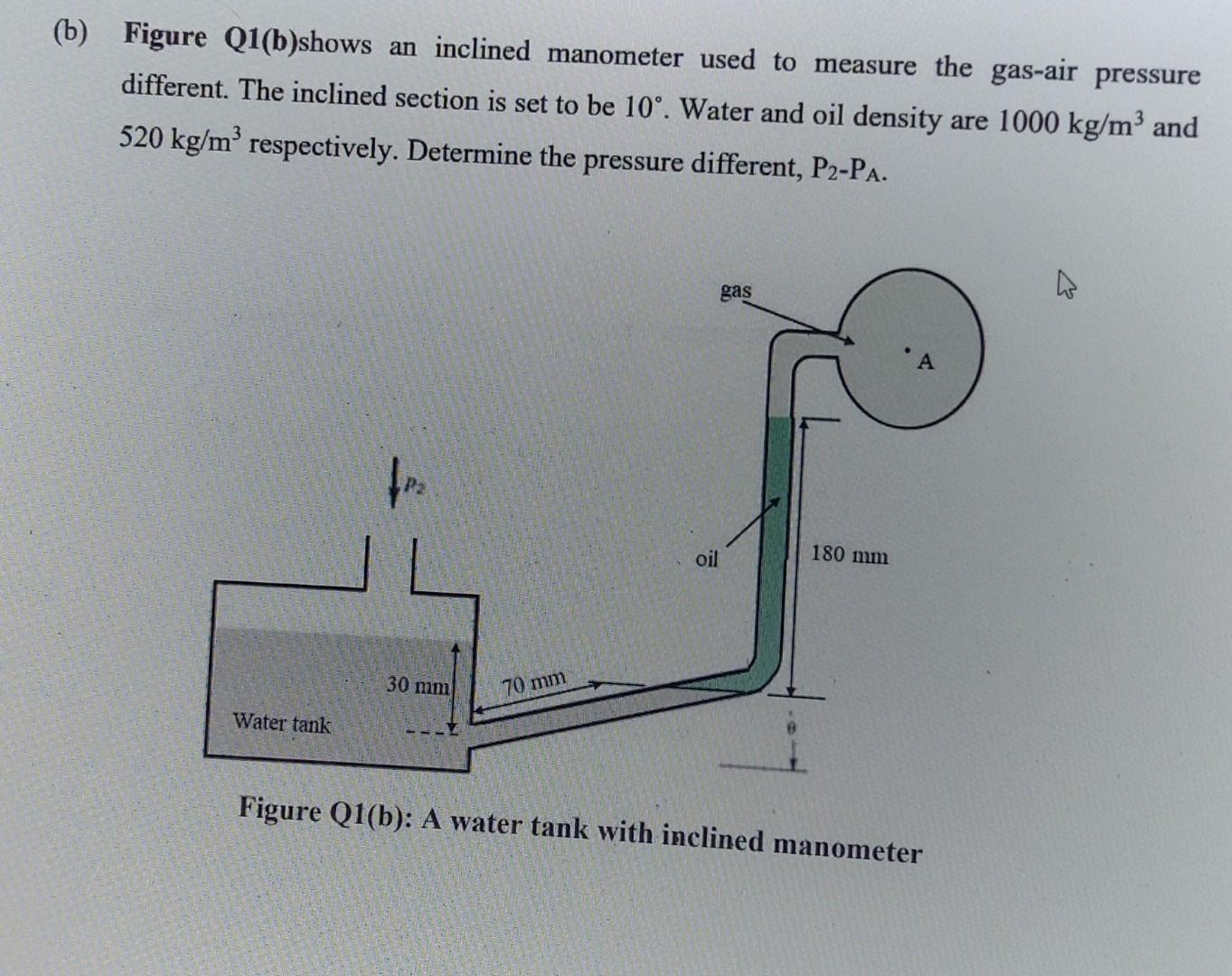

(b) Figure Q1(b)shows an inclined manometer used to measure the gas-air pressure different. The inclined section is set to be 10°. Water and oil density are 1000 kg/m' and 520 kg/m² respectively. Determine the pressure different, P2-Pa. gas oil 180 mm 30 mm וווו 70 Water tank Figure Q1(b): A water tank with inclined manometer
