QUESTION 1 (a) A rectangular barge of 11.6 m x 4.2 m x 1.8 m (length x wide x depth) is used to transport sand (density

[answerhappygod]

Question 1 A A Rectangular Barge Of 11 6 M X 4 2 M X 1 8 M Length X Wide X Depth Is Used To Transport Sand Density 1 (122.57 KiB) Viewed 12 times

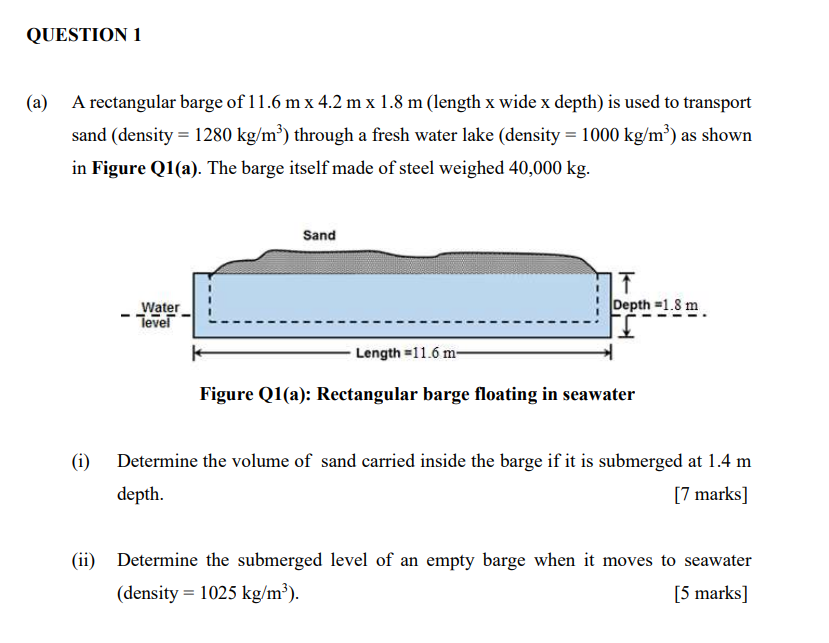

QUESTION 1 (a) A rectangular barge of 11.6 m x 4.2 m x 1.8 m (length x wide x depth) is used to transport sand (density = 1280 kg/m?) through a fresh water lake (density = 1000 kg/m²) as shown in Figure Q1(a). The barge itself made of steel weighed 40,000 kg. Sand IT Depth =1.8 m Water Tever Length =11.6 m- Figure Q1(a): Rectangular barge floating in seawater (i) Determine the volume of sand carried inside the barge if it is submerged at 1.4 m depth. [7 marks] (ii) Determine the submerged level of an empty barge when it moves to seawater (density = 1025 kg/m?). [5 marks]
