Question 8 MP 65 MPa The state of stresses are shown in the figure. Find the answers to the below questions using the Mo

Post by answerhappygod »

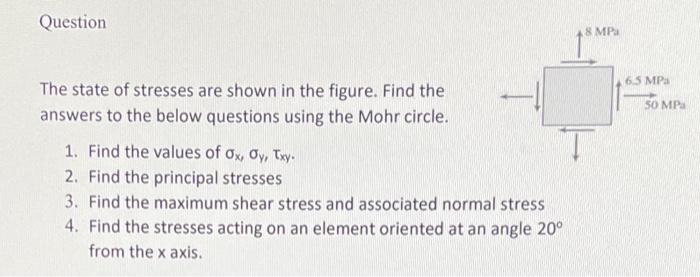

Question 8 Mp 65 Mpa The State Of Stresses Are Shown In The Figure Find The Answers To The Below Questions Using The Mo 1
Question 8 Mp 65 Mpa The State Of Stresses Are Shown In The Figure Find The Answers To The Below Questions Using The Mo 1 (31.82 KiB) Viewed 16 times
Question 8 MP 65 MPa The state of stresses are shown in the figure. Find the answers to the below questions using the Mohr circle. - SO MP 1. Find the values of 0x, Oy, Txy- 2. Find the principal stresses 3. Find the maximum shear stress and associated normal stress 4. Find the stresses acting on an element oriented at an angle 20° from the x axis.
