a) A piston is located in a cylinder containing water as shown in Figure Q1(b). An open U- tube manometer is connected t

Post by answerhappygod »

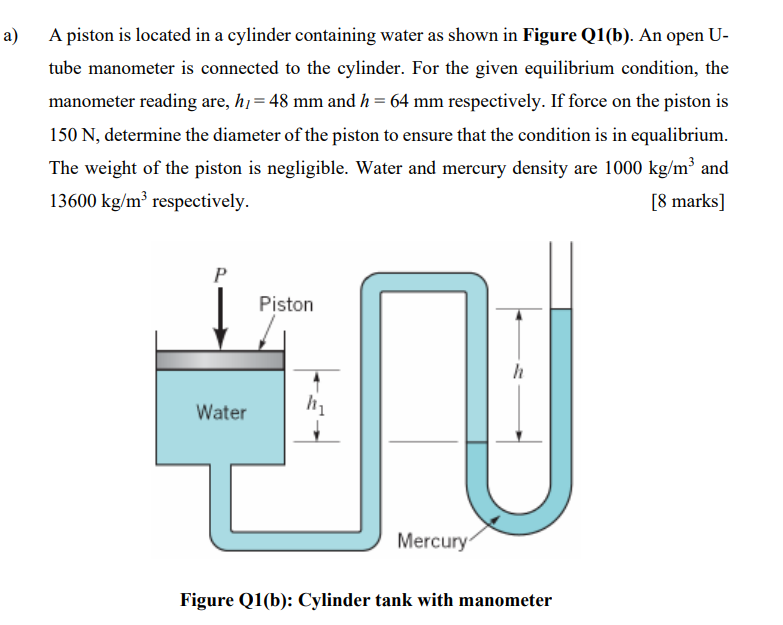

A A Piston Is Located In A Cylinder Containing Water As Shown In Figure Q1 B An Open U Tube Manometer Is Connected T 1
A A Piston Is Located In A Cylinder Containing Water As Shown In Figure Q1 B An Open U Tube Manometer Is Connected T 1 (90.28 KiB) Viewed 14 times
a) A piston is located in a cylinder containing water as shown in Figure Q1(b). An open U- tube manometer is connected to the cylinder. For the given equilibrium condition, the manometer reading are, h1 = 48 mm and h = 64 mm respectively. If force on the piston is 150 N, determine the diameter of the piston to ensure that the condition is in equalibrium. The weight of the piston is negligible. Water and mercury density are 1000 kg/m² and 13600 kg/m² respectively. [8 marks] Р Piston h ប Water hi Mercury Figure Q1(b): Cylinder tank with manometer
