Determine the forces in members CD and DF of the truss shown in figure. 8 kN 12 kN E 4 m + 4 m B B F 4 m G 1 m 1 m 1 m E

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Determine the forces in members CD and DF of the truss shown in figure. 8 kN 12 kN E 4 m + 4 m B B F 4 m G 1 m 1 m 1 m E

Post by answerhappygod »

Determine The Forces In Members Cd And Df Of The Truss Shown In Figure 8 Kn 12 Kn E 4 M 4 M B B F 4 M G 1 M 1 M 1 M E 1
Determine The Forces In Members Cd And Df Of The Truss Shown In Figure 8 Kn 12 Kn E 4 M 4 M B B F 4 M G 1 M 1 M 1 M E 1 (29.27 KiB) Viewed 16 times

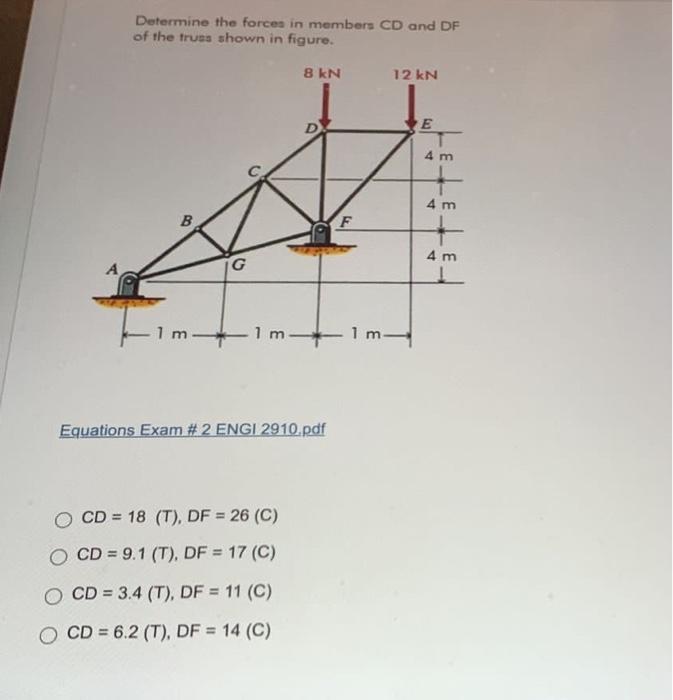

Determine the forces in members CD and DF of the truss shown in figure. 8 kN 12 kN E 4 m + 4 m B B F 4 m G 1 m 1 m 1 m Equations Exam # 2 ENGI 2910.pdf CD = 18 (T), DF = 26 (C) O CD = 9.1 (T), DF = 17 (C) O CD = 3.4 (T), DF = 11 (C) O CD = 6.2 (T), DF = 14 (C)
