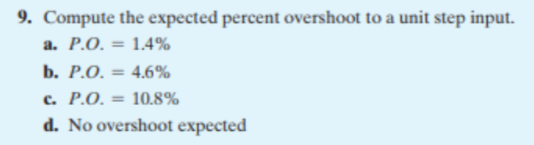

9. Compute the expected percent overshoot to a unit step input. a. P.O. = 1.4% b. P.O. 4.6% c. P.O. = 10.8% d. No overshoot expected
Consider the block diagram of the control system shown in Figure 5.42 in Problems 8 and 9 with the loop transfer function K L(s) = G(s)G(s) s(s + 10)
Controller Process + + R(S) Ge(s) G(s) Y(S) FIGURE 5.42 Block diagram for the Skills Check.
