6 Given the loading shown in Sketch m, let a = 0.6 m, 0.7 m, M 6500 N-m, and w= 20,000 N/m. The beam has a square cross

[answerhappygod]

6 Given The Loading Shown In Sketch M Let A 0 6 M 0 7 M M 6500 N M And W 20 000 N M The Beam Has A Square Cross 1 (76.15 KiB) Viewed 15 times

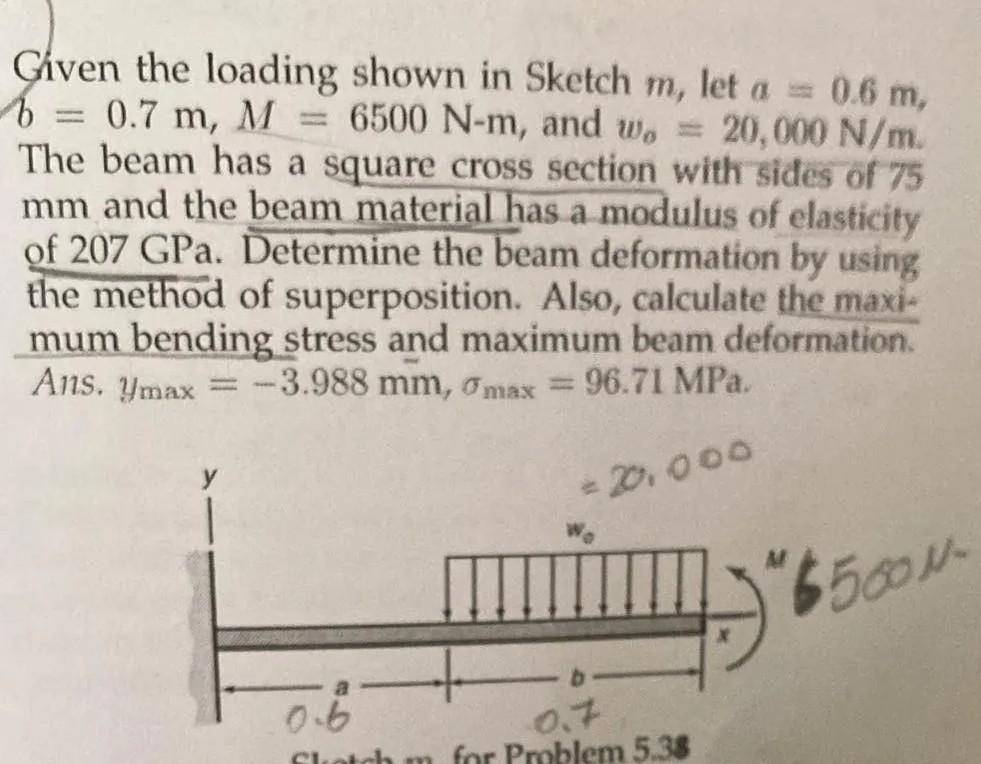

6 Given the loading shown in Sketch m, let a = 0.6 m, 0.7 m, M 6500 N-m, and w= 20,000 N/m. The beam has a square cross section with sides of 75 mm and the beam material has a modulus of elasticity of 207 GPa. Determine the beam deformation by using the method of superposition. Also, calculate the maxi- mum bending stress and maximum beam deformation -3.988 mm, max = 96.71 MPa. Ans. Ymax 20.000 "$5000 a 0-6 0.7 for Problem 5.38
