225 kN 9–63. The rotor shaft of the helicopter is subjected to the tensile force and torque shown when the rotor blades

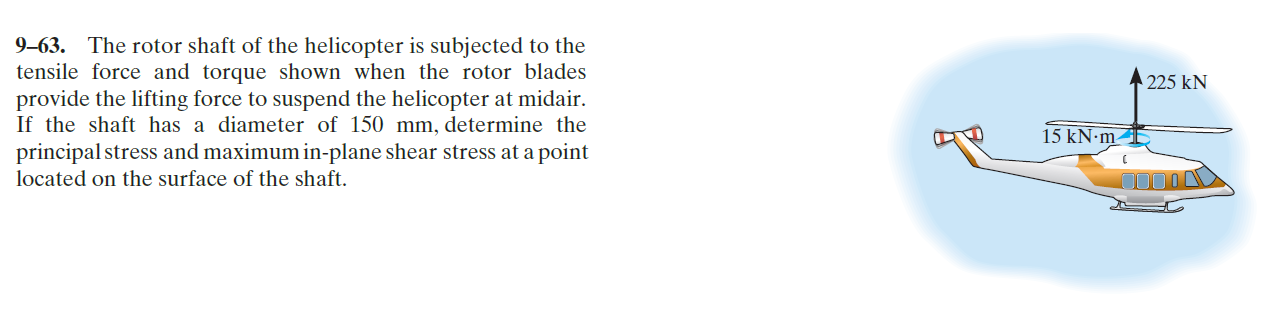

225 kN 9–63. The rotor shaft of the helicopter is subjected to the tensile force and torque shown when the rotor blades provide the lifting force to suspend the helicopter at midair. If the shaft has a diameter of 150 mm, determine the principal stress and maximum in-plane shear stress at a point located on the surface of the shaft. 15 kN.m
