Plates and B are joined as shown with an angle between the 2 plates of 90°. Plate A weighs 10.5 lb and plate B 10 lbs. P

Post by answerhappygod »

Plates And B Are Joined As Shown With An Angle Between The 2 Plates Of 90 Plate A Weighs 10 5 Lb And Plate B 10 Lbs P 1
Plates And B Are Joined As Shown With An Angle Between The 2 Plates Of 90 Plate A Weighs 10 5 Lb And Plate B 10 Lbs P 1 (46.98 KiB) Viewed 12 times

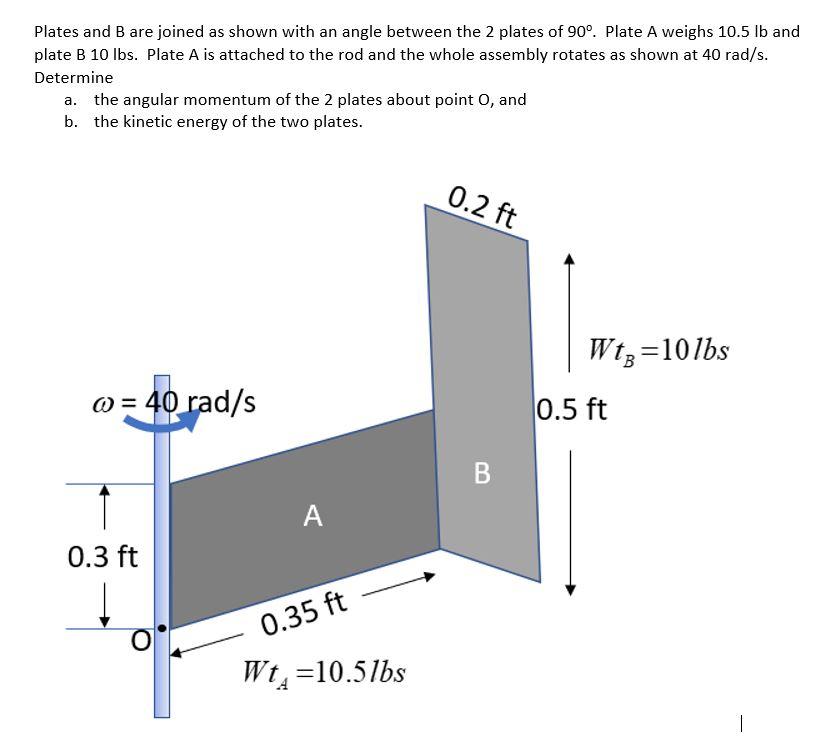

Plates and B are joined as shown with an angle between the 2 plates of 90°. Plate A weighs 10.5 lb and plate B 10 lbs. Plate A is attached to the rod and the whole assembly rotates as shown at 40 rad/s. Determine a. the angular momentum of the 2 plates about point o, and b. the kinetic energy of the two plates. 0.2 ft Wt3 =10 lbs 0 = 40 rad/s 0.5 ft B 1 0.3 ft 0.35 ft Wt2 =10.51bs |
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
