Two identical disks of mass m and radius r are on a smooth (frictionless) surface. The two disks are connected by a pin

[answerhappygod]

Two Identical Disks Of Mass M And Radius R Are On A Smooth Frictionless Surface The Two Disks Are Connected By A Pin 1 (76.06 KiB) Viewed 14 times

let last digit of student number = 1

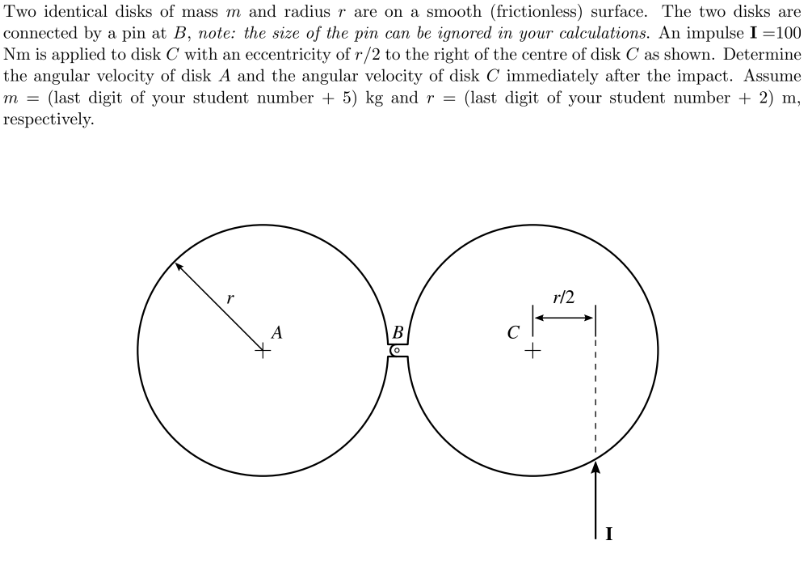

Two identical disks of mass m and radius r are on a smooth (frictionless) surface. The two disks are connected by a pin at B, note: the size of the pin can be ignored in your calculations. An impulse I =100 Nm is applied to disk C with an eccentricity of r/2 to the right of the centre of disk C as shown. Determine the angular velocity of disk A and the angular velocity of disk C immediately after the impact. Assume m = (last digit of your student number + 5) kg and r = (last digit of your student number + 2) m, respectively. r/2 ch А B +
