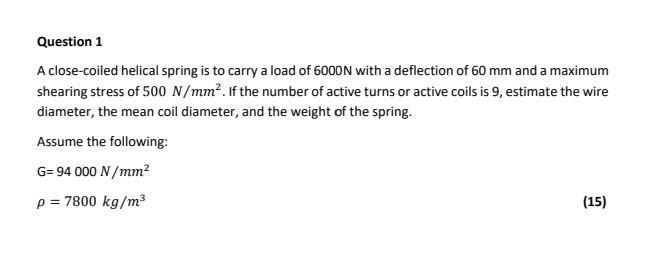

Question 1 A close-coiled helical spring is to carry a load of 6000N with a deflection of 60 mm and a maximum shearing stress of 500 N/mm². If the number of active turns or active coils is 9, estimate the wire diameter, the mean coil diameter, and the weight of the spring. Assume the following: G= 94 000 N/mm2 p = 7800 kg/m3 (15)

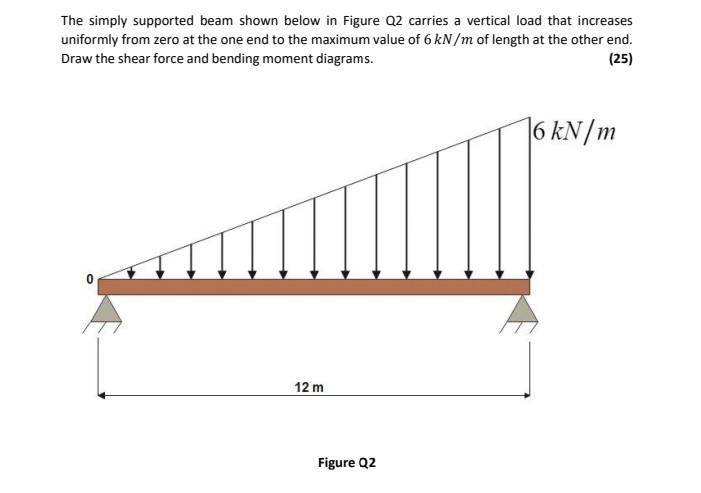

The simply supported beam shown below in Figure Q2 carries a vertical load that increases uniformly from zero at the one end to the maximum value of 6 kN/m of length at the other end. Draw the shear force and bending moment diagrams. (25) 16 kN/m 12 m Figure Q2
