Q.5 Considering a thin plate subjected to surface load as shown in the figure below were applied to determine the nodal

Post by answerhappygod »

Q 5 Considering A Thin Plate Subjected To Surface Load As Shown In The Figure Below Were Applied To Determine The Nodal 1
Q 5 Considering A Thin Plate Subjected To Surface Load As Shown In The Figure Below Were Applied To Determine The Nodal 1 (18.26 KiB) Viewed 28 times

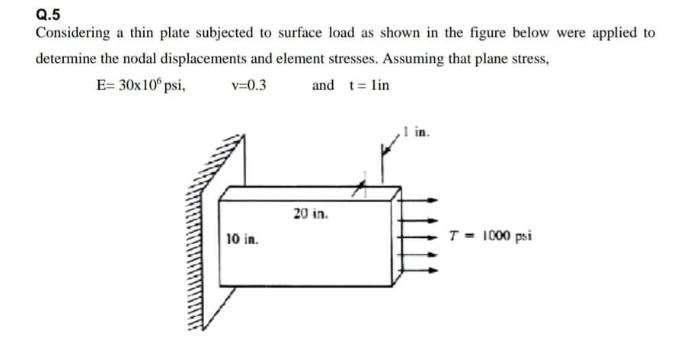

Q.5 Considering a thin plate subjected to surface load as shown in the figure below were applied to determine the nodal displacements and element stresses. Assuming that plane stress, E= 30x10 psi, v=0.3 and t = lin 20 in. 10 in. T - 1000 psi
