= (a) Figure A shows a model of a simplified suspension system. In the figure, m, k, and c represent the suspension mass

[answerhappygod]

A Figure A Shows A Model Of A Simplified Suspension System In The Figure M K And C Represent The Suspension Mass 1 (36.6 KiB) Viewed 41 times

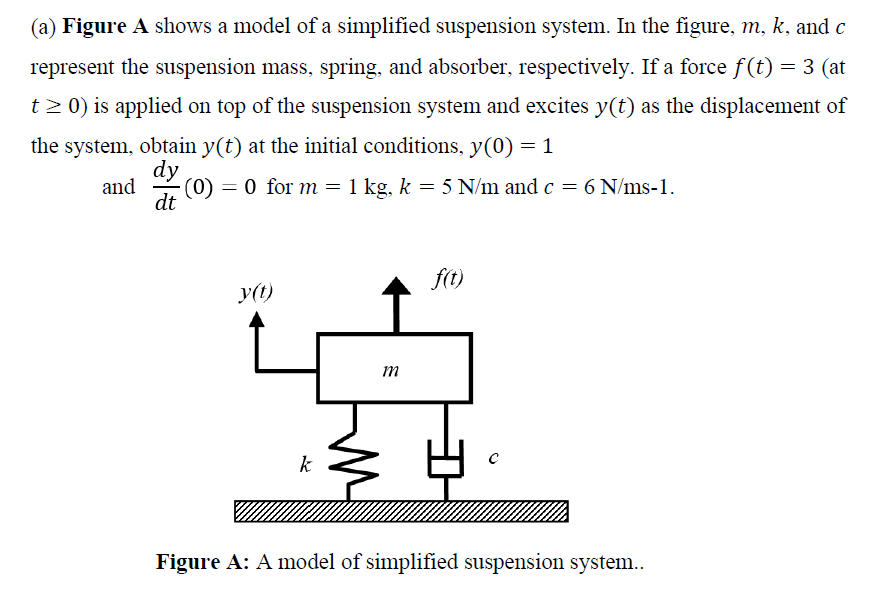

= (a) Figure A shows a model of a simplified suspension system. In the figure, m, k, and c represent the suspension mass, spring, and absorber, respectively. If a force f(t) = 3 (at t> 0) is applied on top of the suspension system and excites y(t) as the displacement of the system, obtain y(t) at the initial conditions, y(0) = 1 dy and (0) = 0 for m = 1 kg, k = 5 N/m and c = 6 N/ms-1. dt = f(t) y(t) m k с Figure A: A model of simplified suspension system..
