The plates of identical thickness, 0.595-in, are clamped with a 0.5-in bolt. The plate one has a Young's modulus is 30 M

Post by answerhappygod »

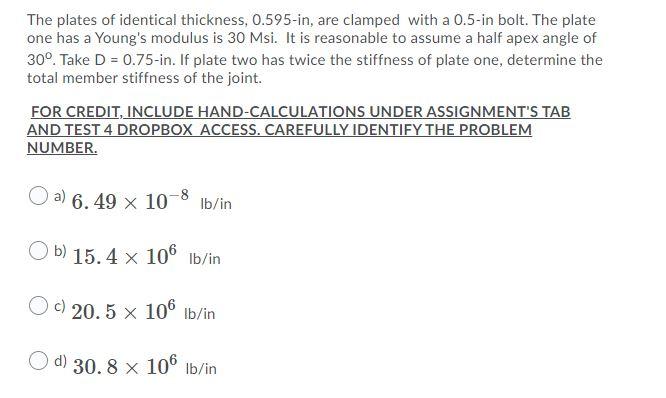

The Plates Of Identical Thickness 0 595 In Are Clamped With A 0 5 In Bolt The Plate One Has A Young S Modulus Is 30 M 1
The Plates Of Identical Thickness 0 595 In Are Clamped With A 0 5 In Bolt The Plate One Has A Young S Modulus Is 30 M 1 (33.7 KiB) Viewed 36 times
The plates of identical thickness, 0.595-in, are clamped with a 0.5-in bolt. The plate one has a Young's modulus is 30 Msi. It is reasonable to assume a half apex angle of 30°. Take D = 0.75-in. If plate two has twice the stiffness of plate one, determine the total member stiffness of the joint. FOR CREDIT, INCLUDE HAND-CALCULATIONS UNDER ASSIGNMENT'S TAB AND TEST 4 DROPBOX ACCESS. CAREFULLY IDENTIFY THE PROBLEM NUMBER. a) 6.49 x 10 X lb/in Ob) 15.4 x 106 lb/in Oc) 20.5 x 106 lb/in d) 30.8 x 106 lb/in
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
