Question # 4(25 Marks) Figure Q4 shows a thin-walled cantilever beam that supports shear loads at its free end. Maximum

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question # 4(25 Marks) Figure Q4 shows a thin-walled cantilever beam that supports shear loads at its free end. Maximum

Post by answerhappygod »

Question 4 25 Marks Figure Q4 Shows A Thin Walled Cantilever Beam That Supports Shear Loads At Its Free End Maximum 1
Question 4 25 Marks Figure Q4 Shows A Thin Walled Cantilever Beam That Supports Shear Loads At Its Free End Maximum 1 (50.22 KiB) Viewed 36 times

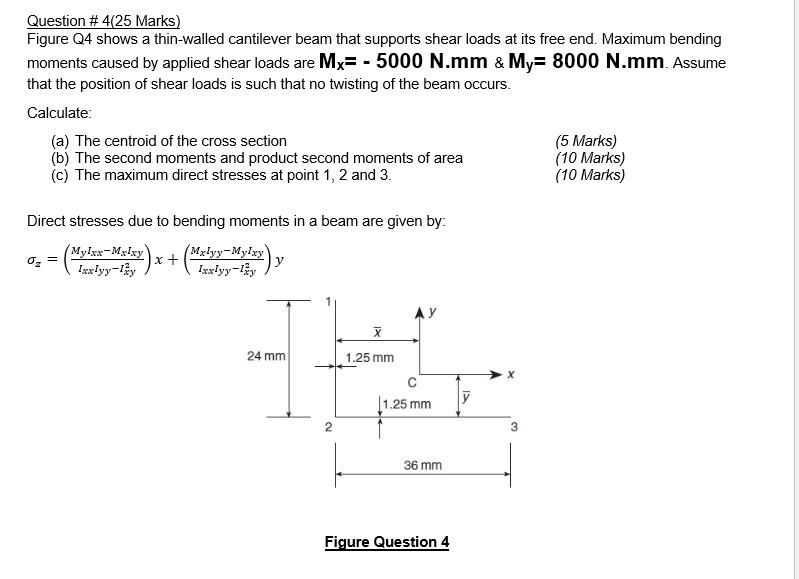

Question # 4(25 Marks) Figure Q4 shows a thin-walled cantilever beam that supports shear loads at its free end. Maximum bending moments caused by applied shear loads are Mx= - 5000 N.mm & My=8000 N.mm. Assume that the position of shear loads is such that no twisting of the beam occurs. Calculate: (a) The centroid of the cross section (5 Marks) (b) The second moments and product second moments of area (10 Marks) (c) The maximum direct stresses at point 1, 2 and 3. (10 Marks) Direct stresses due to bending moments in a beam are given by: Mylxx-Mxxy Mxlyy-Mylxy x + Ixxlyy-lay Ixxlyy-ly 0 = 24 mm X 1.25 mm с 1.25 mm X 2 3 36 mm Figure Question 4
