(a) Suggest suitable applications for EACH of the responses listed below. i. Undamped response ii. Underdamped response

[answerhappygod]

A Suggest Suitable Applications For Each Of The Responses Listed Below I Undamped Response Ii Underdamped Response 1 (58.27 KiB) Viewed 28 times

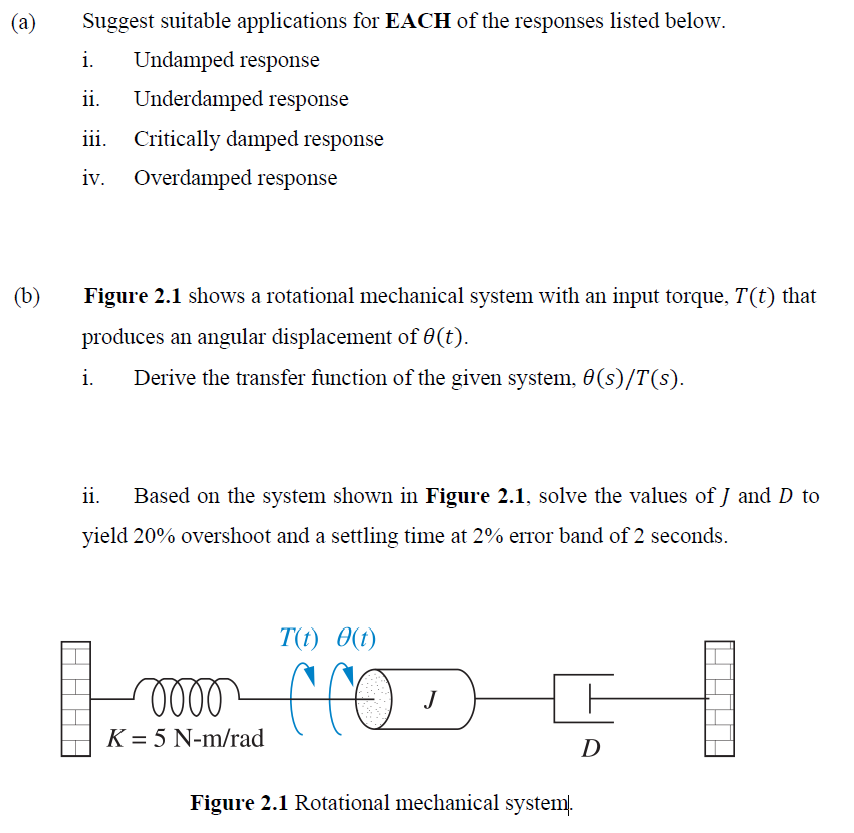

(a) Suggest suitable applications for EACH of the responses listed below. i. Undamped response ii. Underdamped response iii. Critically damped response iv. Overdamped response (b) Figure 2.1 shows a rotational mechanical system with an input torque, T(t) that produces an angular displacement of e(t). . i. Derive the transfer function of the given system, o(s)/T(S). ii. Based on the system shown in Figure 2.1, solve the values of J and D to yield 20% overshoot and a settling time at 2% error band of 2 seconds. T(t) Olt) 0000cco ண J Hi HHHH K = 5 N-m/rad D Figure 2.1 Rotational mechanical systemſ.
