[***Bonus Problem 2***| A circular bar with diameter of 2 inch and length of 20 inch is fixed at the end A. The bar is l

[answerhappygod]

Bonus Problem 2 A Circular Bar With Diameter Of 2 Inch And Length Of 20 Inch Is Fixed At The End A The Bar Is L 1 (46.23 KiB) Viewed 41 times

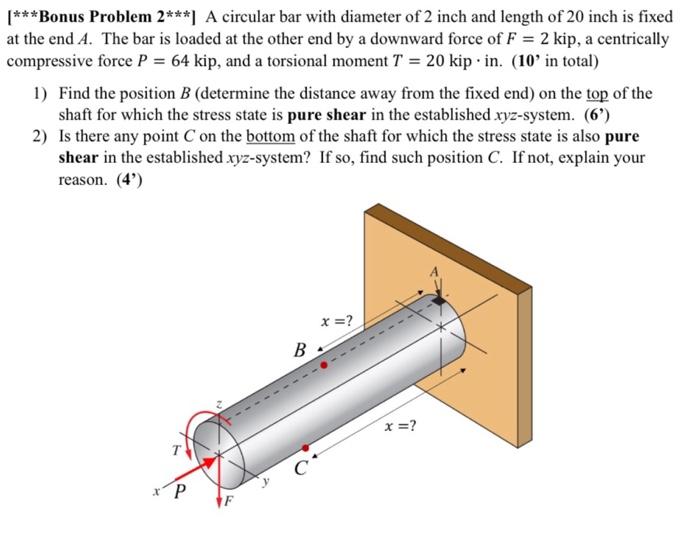

[***Bonus Problem 2***| A circular bar with diameter of 2 inch and length of 20 inch is fixed at the end A. The bar is loaded at the other end by a downward force of F = 2 kip, a centrically compressive force P = 64 kip, and a torsional moment T = 20 kip. in. (10' in total) 1) Find the position B (determine the distance away from the fixed end) on the top of the shaft for which the stress state is pure shear in the established xyz-system. (6) 2) Is there any point on the bottom of the shaft for which the stress state is also pure shear in the established xyz-system? If so, find such position C. If not, explain your reason. (4) x =? В. B X=? T C x Ρ
