Using Autodesk inventor professional 2016/2017/2018/2019/2020/2021/2022 version only: NB: Submission using any other sof

[answerhappygod]

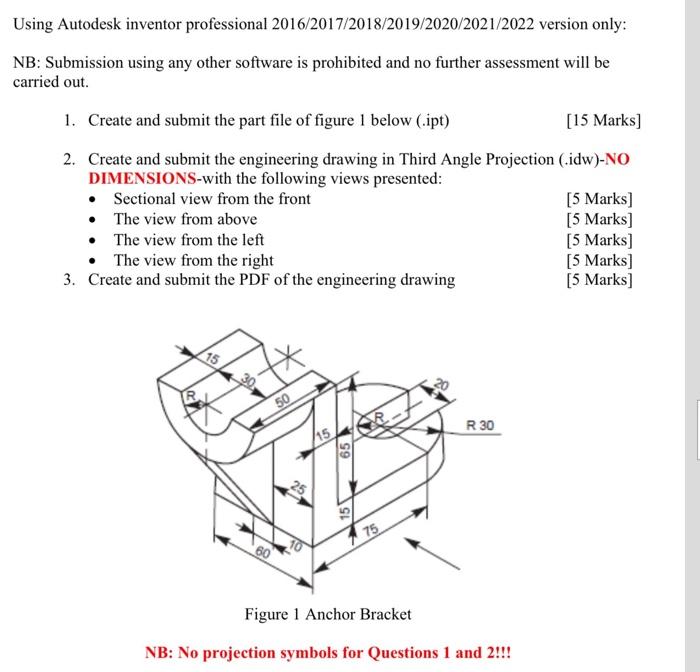

Using Autodesk Inventor Professional 2016 2017 2018 2019 2020 2021 2022 Version Only Nb Submission Using Any Other Sof 1 (54.37 KiB) Viewed 36 times

Using Autodesk inventor professional 2016/2017/2018/2019/2020/2021/2022 version only: NB: Submission using any other software is prohibited and no further assessment will be carried out. 1. Create and submit the part file of figure 1 below (.ipt) [15 Marks) 2. Create and submit the engineering drawing in Third Angle Projection (.idw)-NO DIMENSIONS-with the following views presented: • Sectional view from the front [5 Marks) • The view from above [5 Marks) • The view from the left [5 Marks) The view from the right [5 Marks) 3. Create and submit the PDF of the engineering drawing [5 Marks] 15 50 R 30 115 65 15 75 60 Figure 1 Anchor Bracket NB: No projection symbols for Questions 1 and 2!!!
