7. A torque T = 100 N.m is applied to the shaft EFG. Gear F transmits torque to shaft ABCD through gear C, which drives

[answerhappygod]

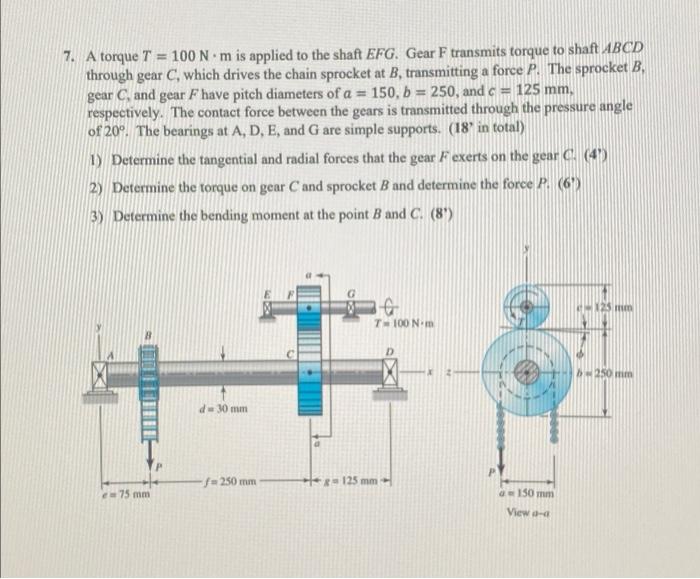

7 A Torque T 100 N M Is Applied To The Shaft Efg Gear F Transmits Torque To Shaft Abcd Through Gear C Which Drives 1 (60.62 KiB) Viewed 36 times

7. A torque T = 100 N.m is applied to the shaft EFG. Gear F transmits torque to shaft ABCD through gear C, which drives the chain sprocket at B, transmitting a force P. The sprocket B. gear C, and gear F have pitch diameters of a = 150, b = 250, and c = 125 mm, respectively. The contact force between the gears is transmitted through the pressure angle of 20%. The bearings at A, D, E, and G are simple supports. (18) in total) 1) Determine the tangential and radial forces that the gear F exerts on the gear (41) 2) Determine the torque on gear Cand sprocket B and determine the force Pa (6) 3) Determine the bending moment at the point B and C (8) 6 im T-100 Nm 250 mm 30 mm f250 mm 125 mm 75 mm 150 mm View
