(13) For the beam subjected to the loading shown in the figure below, using FEA simulation to determine the nodal displa

Post by answerhappygod »

13 For The Beam Subjected To The Loading Shown In The Figure Below Using Fea Simulation To Determine The Nodal Displa 1
13 For The Beam Subjected To The Loading Shown In The Figure Below Using Fea Simulation To Determine The Nodal Displa 1 (22.82 KiB) Viewed 33 times

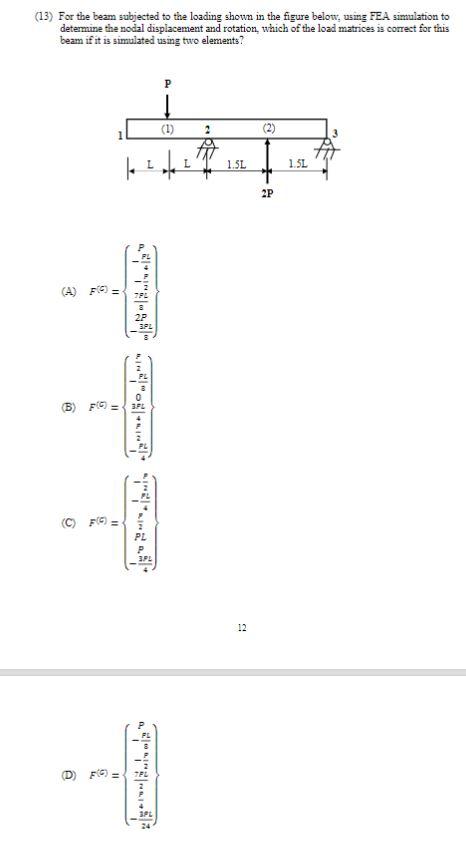

(13) For the beam subjected to the loading shown in the figure below, using FEA simulation to determine the nodal displacement and rotation, which of the load matrices is correct for this beam if it is simulated using two elements? P (1) 2 (2) 1.5L 1 SL 2P Min. (A) 11 15. (B) FC = ( CF) 11 3P 12 -- ( DF 11 I.
