A thin-walled steel structure has a cross-section with non-uniform wall thickness, as shown in Figure 3. There is a slot

[answerhappygod]

A Thin Walled Steel Structure Has A Cross Section With Non Uniform Wall Thickness As Shown In Figure 3 There Is A Slot 1 (45.91 KiB) Viewed 35 times

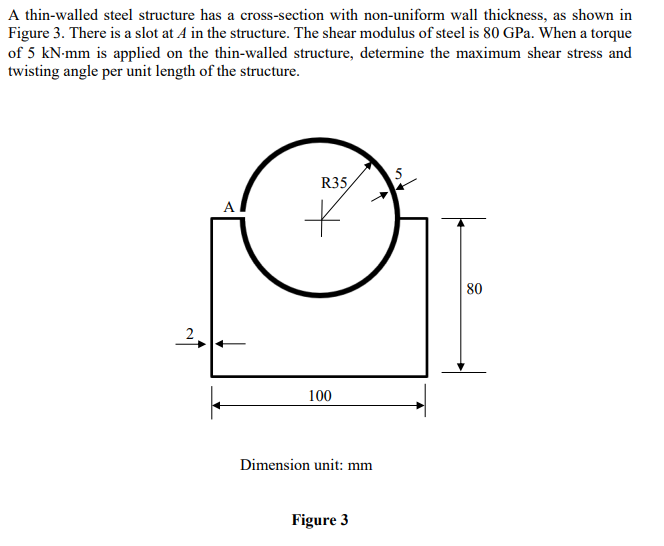

A thin-walled steel structure has a cross-section with non-uniform wall thickness, as shown in Figure 3. There is a slot at A in the structure. The shear modulus of steel is 80 GPa. When a torque of 5 kN-mm is applied on the thin-walled structure, determine the maximum shear stress and twisting angle per unit length of the structure. R35 80 + 100 Dimension unit: mm Figure 3
