Q3. a) A solid circular shaft will be 2 m long, and its diameter is to be determined. It is made of steel with a shear m

Post by answerhappygod »

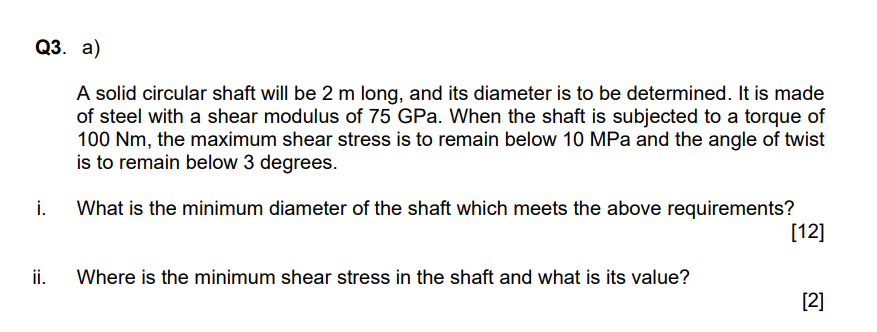

Q3 A A Solid Circular Shaft Will Be 2 M Long And Its Diameter Is To Be Determined It Is Made Of Steel With A Shear M 1
Q3 A A Solid Circular Shaft Will Be 2 M Long And Its Diameter Is To Be Determined It Is Made Of Steel With A Shear M 1 (58.47 KiB) Viewed 39 times
Q3. a) A solid circular shaft will be 2 m long, and its diameter is to be determined. It is made of steel with a shear modulus of 75 GPa. When the shaft is subjected to a torque of 100 Nm, the maximum shear stress is to remain below 10 MPa and the angle of twist is to remain below 3 degrees. i. What is the minimum diameter of the shaft which meets the above requirements? [12] ii. Where is the minimum shear stress in the shaft and what is its value? [2]
