4. A spring needs to measure 0 to 1000 N over a deformation scale of length 80 mm. The spring is composed of 30 total co

[answerhappygod]

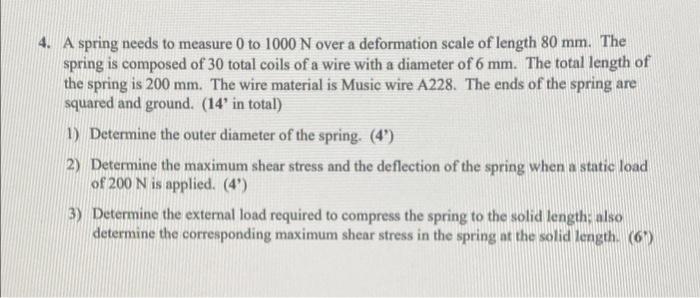

4 A Spring Needs To Measure 0 To 1000 N Over A Deformation Scale Of Length 80 Mm The Spring Is Composed Of 30 Total Co 1 (36.38 KiB) Viewed 37 times

4. A spring needs to measure 0 to 1000 N over a deformation scale of length 80 mm. The spring is composed of 30 total coils of a wire with a diameter of 6 mm. The total length of the spring is 200 mm. The wire material is Music wire A228. The ends of the spring are squared and ground. (14' in total) 1) Determine the outer diameter of the spring. (4") 2) Determine the maximum shear stress and the deflection of the spring when a static load of 200 N is applied. (4') 3) Determine the external load required to compress the spring to the solid length: also determine the corresponding maximum shear stress in the spring at the solid length. (6)
