(9) For the steel bar having a uniform diameter of 10 mm in the figure below, using the energy method, which of the foll

[answerhappygod]

9 For The Steel Bar Having A Uniform Diameter Of 10 Mm In The Figure Below Using The Energy Method Which Of The Foll 1 (27.89 KiB) Viewed 34 times

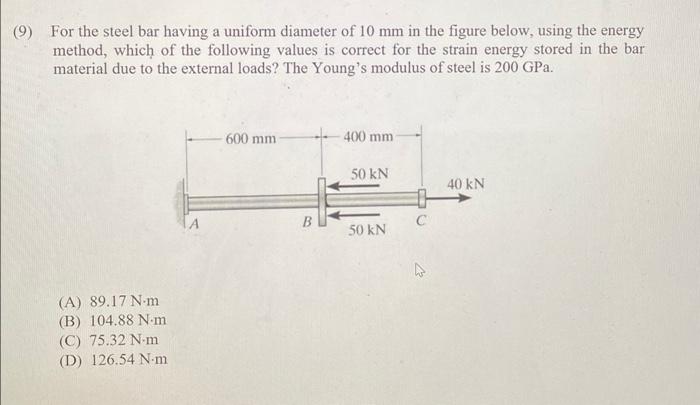

(9) For the steel bar having a uniform diameter of 10 mm in the figure below, using the energy method, which of the following values is correct for the strain energy stored in the bar material due to the external loads? The Young's modulus of steel is 200 GPa. 600 mm 400 mm 50 KN 40 KN B 50 KN A (A) 89.17 N.m (B) 104.88 Nom (C) 75.32 N.m (D) 126.54 Nm
